Larkin Frame

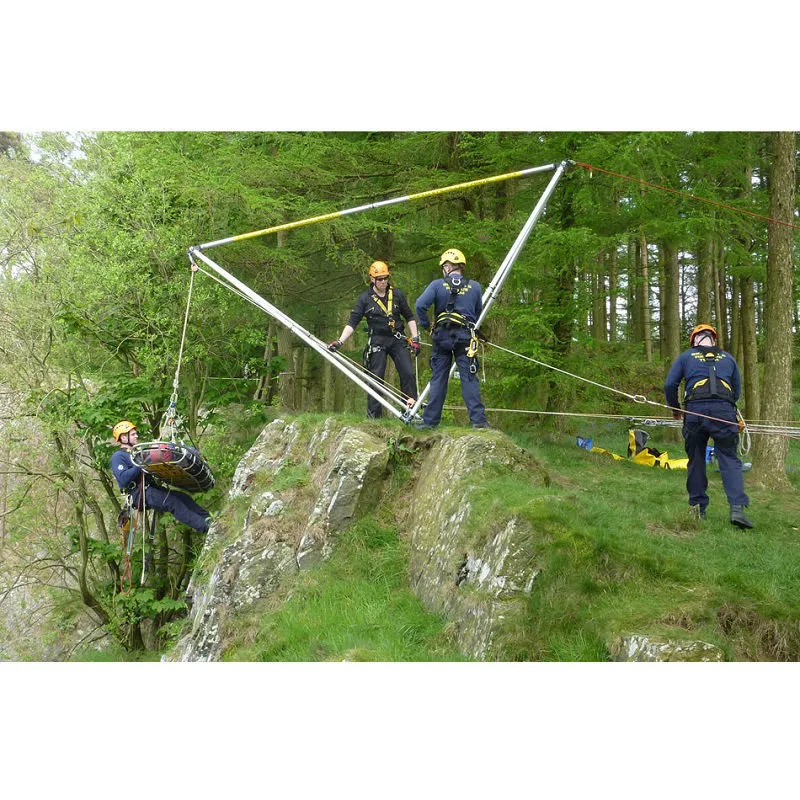

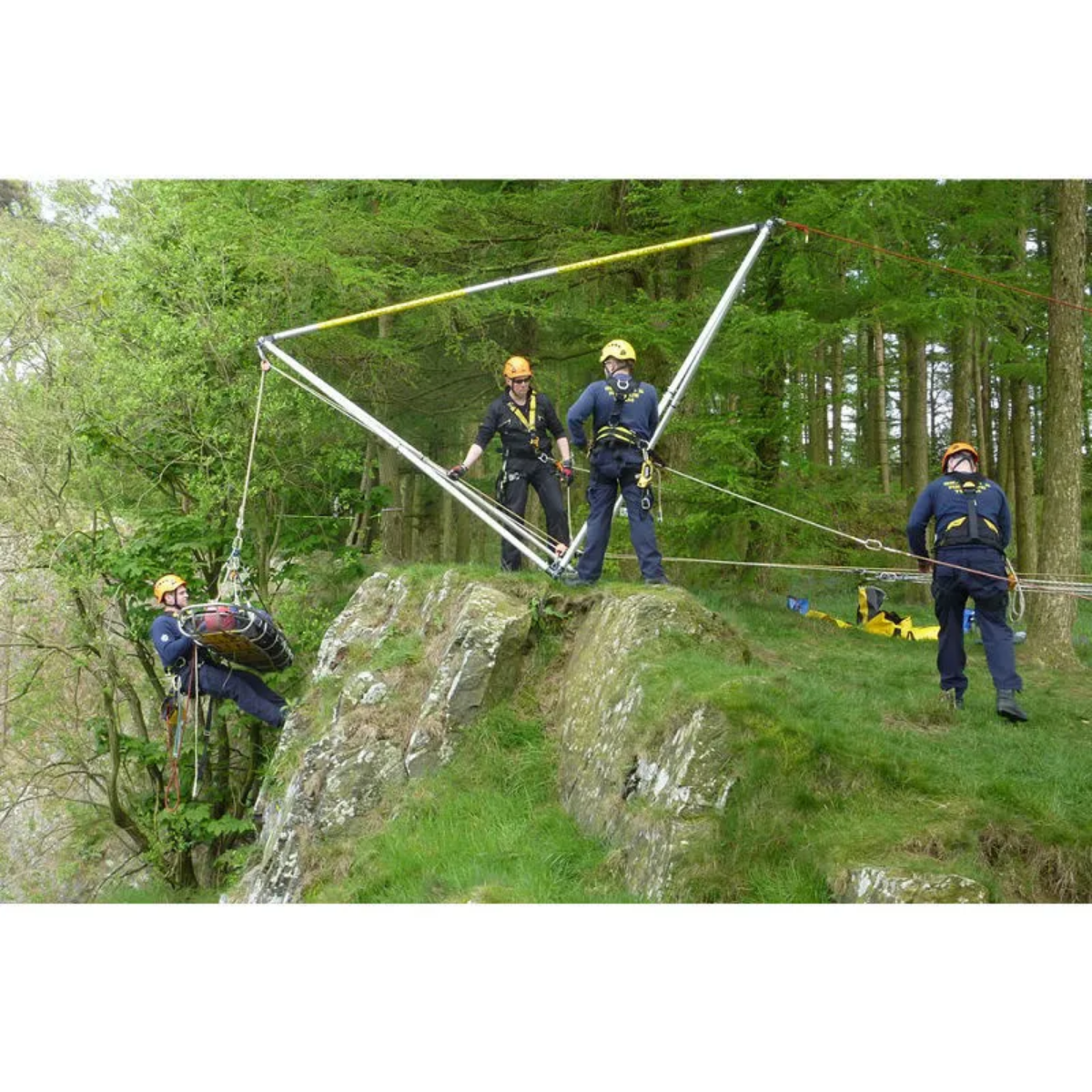

The Larkin Rescue Frame is designed so that it can be placed at the edge of a drop, slippage is minimised by picking out a small locating hole for each hinge spike. A star picket can be driven through the triangular hole and soft ground feet can be fitted for use on soft ground.

If for any reason the hinge spike cannot be used the Larkin Rescue Frame is still very stable and any slippage of the base will always be away from the drop.

Two operators can readily assemble the full size Larkin Rescue Frame in less than 10 Minutes.

In any lowering or lifting job the top edge is likely to present problems. The solutions are many and varied but perhaps the most elegant and sophisticated solution is the Larkin Rescue Frame.

Key Features:
Fits into most basket style stretchers.
Weighs only 40 kg.
Full size reach is 2.5 metres (half size 1.2 metres).
Constructed of high tenacity aluminium alloy.
Safe working load of 400 kg.
For freight, the Larkin Frame measures 202 x 24 x 30cm, and weighs about 44kg.

Components
1 x 2 Section Tension Leg
4 x 2 Section Compression Legs
5 x Joiners
2 x Tension Leg End Fittings
4 x Compression Leg End Fittings
1 x Full Size Hinge Tube (identical to compression leg section)
1 x Half Size Hinge Tube
25 x Linch Pins with bail (including 3 spares)
2 x Apex Pins with Spring Clips
2 x Hinge Channel fitted with spike, hinge pins and spring clips
2 x Hinge Fitting
1 x Transport Pack
2 x Base Plates with 4 Large Spring clips
