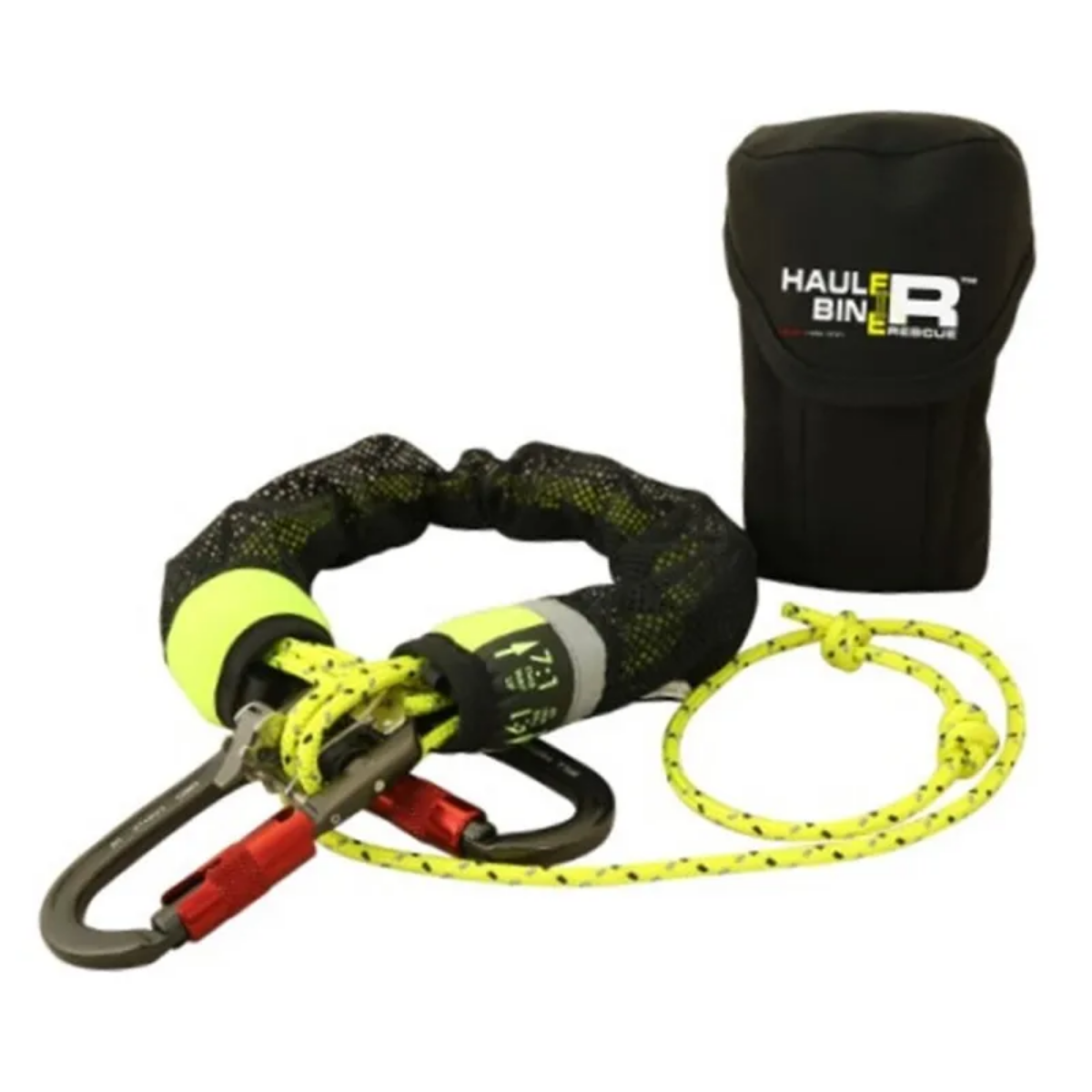

The ISC HaulerBiner Compact Rescue System is load rated to 140kg (310lbs) but it has an MBS of at least 16kN/3500lbs tested as a complete system. Kits are available in three standard lengths; 105cm (41"), 165cm (65") or 300cm (118"), with custom lengths available on request. The length of the system, when fully contracted is only 32cm (12")!
The HaulerBiner can be used in a number of ways:
As part of a pick-off system
On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
When suspended in a harness, pull up on the system and achieve a 7:1(theoretical) MA
With a D4/D2 Descender, as part of a short-haul / long-lower system
As a tensioning system for short/low load lines
As a stretcher management device, using two or more HaulerBiners to easily change or adjust the orientation of the stretcher
Part Codes:
HB105.2 - 105cm (3'5") Kit
HB165.2- 165cm (5'5") Kit
HB300.2- 300cm (9'10") Kit
Technical Information:
(WLL) Working Load Limit (kg)140
(WLL) Working Load Limit (lbs)308
(MBS) Minimum Breaking Strength (kN)16
(MBS) Minimum Breaking Strength (lbf)3596
Serial numberingAs standard
EZYiDAvailable on request
Gate/lock typeSupersafe
Approved Standards:
Meets EN 12278
Meets EN567
Suitable For:
Arborists
Industrial Height Safety
Rope Access
Adventure Parks
Search & Rescue
Military & Tactical
