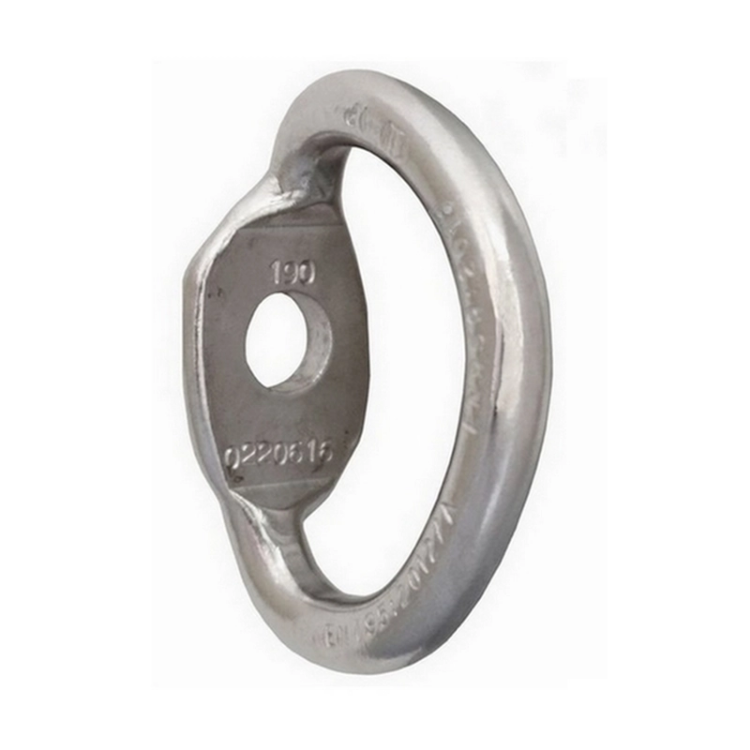

Raumer Anellox

The Raumer Anellox Ø10 A316L is a versatile stainless steel anchoring ring designed for climbing, caving and rescue applications. Its redesigned shape allows multidirectional loading, making it suitable for use in three directions and particularly effective on roofs and overhangs. The optimised curvature helps keep the user closer to the wall while reducing leverage forces and providing space for both a rope and carabiner. Manufactured from A316L stainless steel, the Anellox can be installed using M10 screw anchors or bolts and complies with current EN and UIAA standards.

Features:
Redesigned shape for multidirectional loading
Suitable for use in three directions
Ideal for roofs and overhangs
Reduced lever arm design
Allows simultaneous use of rope and carabiner
Popular for caving and rescue rigging systems
Compatible with M10 screw anchors and bolts
Manufactured from A316L stainless steel

Specifications:
Material: A316L Stainless Steel
Weight: 70g
Dimensions: 21 x 60 x 45mm
Hole Diameter: 10mm
Static Shear Strength: 25kN
Static Pull-Out Strength: 20kN
Maximum Users: 1 Person
Warranty: 3 Years

Certifications:
EN 795:2012 - Type A Anchor
EN 959:2018 - Rock Anchors
UIAA Safety Standard 123 Version 5.0
