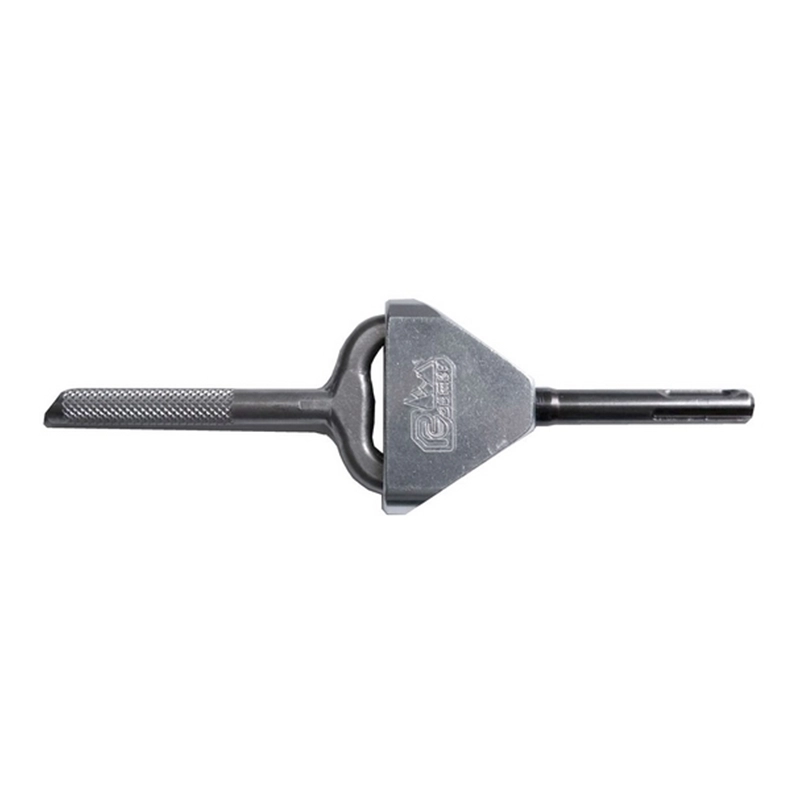

The Raumer Radius Tool is designed to simplify the installation of RADIUS Raumer Classic Resin Anchors when used with pre-dosed synthetic resin capsules. Compatible with SDS PLUS hammer drills, this specialist tool allows anchors to be installed quickly, accurately and with minimal effort while ensuring the resin and catalyst are thoroughly mixed for a secure and reliable bond. Constructed with a durable aluminium anchor chamber, a stainless steel drill attachment point and an extra-strong carbon steel SDS PLUS shank, the tool is built to withstand repeated professional use in demanding environments. Lightweight and easy to handle, it provides a more efficient anchor installation process for climbing route development, bolting projects and industrial applications.
Features:
Designed for installing RADIUS Raumer Classic Resin Anchors
Compatible with pre-dosed synthetic resin capsules
SDS PLUS fitting for use with compatible hammer drills
Ensures thorough mixing of resin and catalyst
Enables faster and more consistent anchor installation
Lightweight and easy to use
Durable aluminium anchor chamber
Stainless steel drill attachment point
Extra-strong carbon steel SDS PLUS shank
Suitable for professional bolting and anchor installation applications
Specifications:
Weight: 87g
Anchor Chamber Material: Aluminium
Drill Attachment Material: Stainless Steel
Shank Type: SDS PLUS
Shank Material: Extra-Strong Carbon Steel
Installation:
Drill the hole according to the recommended resin anchor installation method and insert the appropriate resin capsule.
Remove the drill bit from the hammer drill and fit the SDS PLUS placement tool.
Insert the resin anchor into the hole and lightly tap it with a hammer to break the resin capsule.
Position the placement tool over the anchor head.
Ensure the drill remains perfectly aligned with the hole and begin rotating at a slow speed.
Gradually increase rotation speed while maintaining alignment.
Once the anchor is fully seated, stop the drill and immediately align the anchor in the intended load direction.
Any excess resin should be evenly spread around the edge of the hole to help prevent water ingress.
Allow the resin to cure according to the manufacturer's recommendations before loading the anchor.
Compatibility:
RADIUS Raumer Classic Resin Anchors
Pre-dosed Synthetic Resin Capsules
SDS PLUS Hammer Drills
