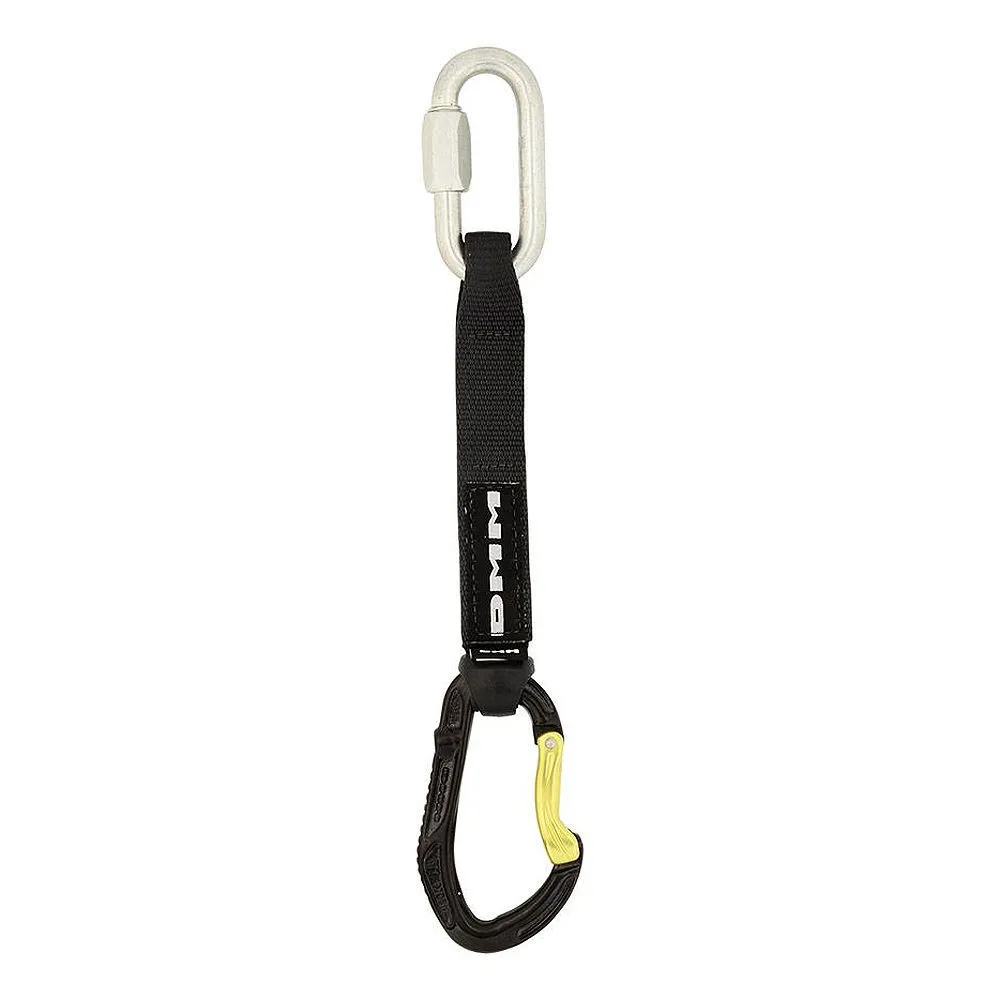

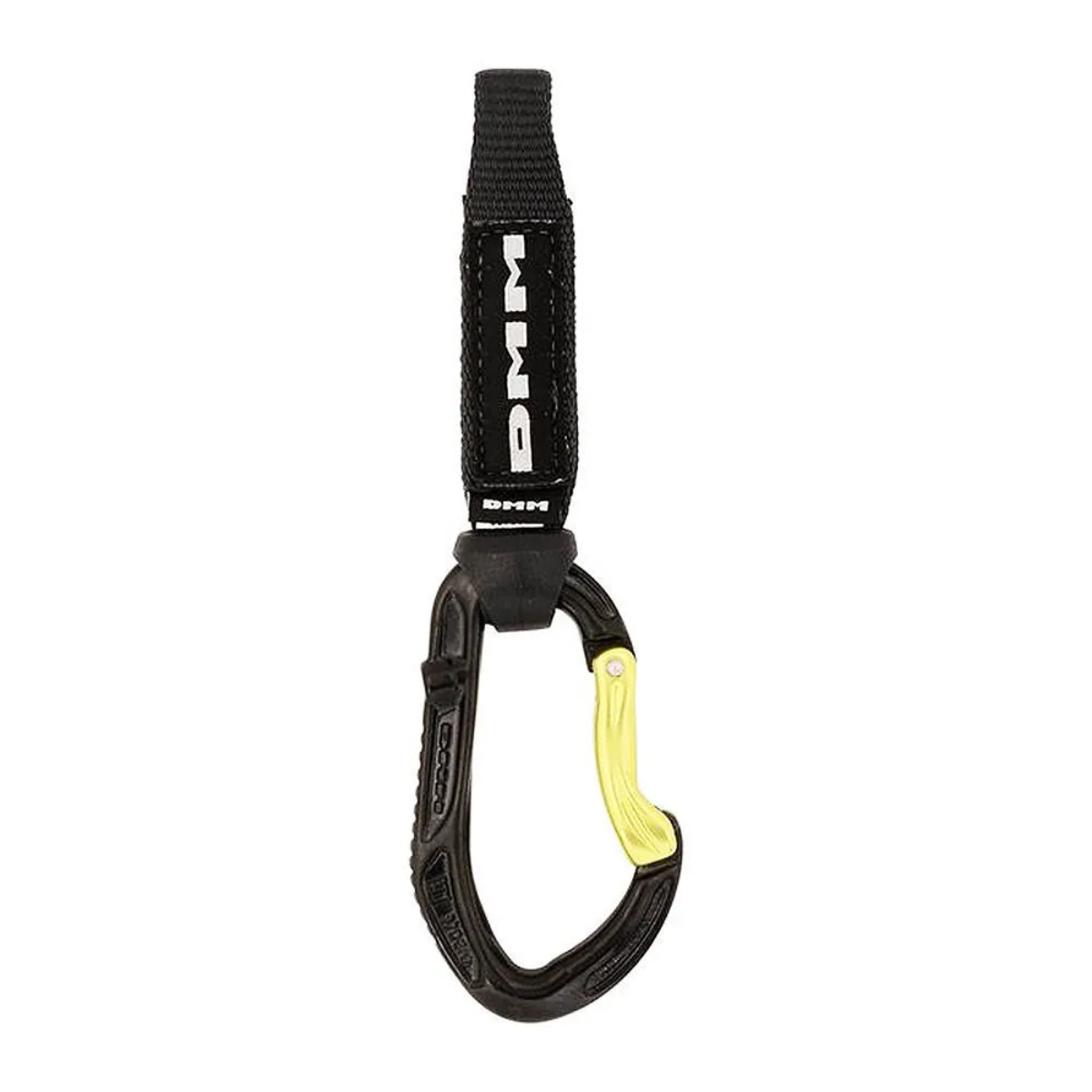

Alpha Steel Quickdraw

The DMM Alpha Steel Quickdraw features a carbon steel construction that allows it to handle the heavy use of modern walls. Generous rope radii give softer catches and extend rope life, while a captive bar can be fitted for easy inspection and maintenance.

The Alpha Steel is suited to areas of high wear such as first bolts, crux bolts, or changes in direction. Place throughout the wall for the best user experience.

Features:
Sport carabiner for durability: Sport carabiners are designed to be robust and give easy clipping. Hot forging allows for extra metal in areas of high wear, making these biners suitable for clipping bolts, repeated falls, and intensive use of modern sport climbing.
Bent gate for easy clipping: DMM's curved gate guides ropes into the carabiner during clipping. Grooves in the gate improve handling, and increase control when making tricky clips. Solid gate carabiners are suited to sport climbing, where ease of handling and resistance to wear are more important than weight.
Keylock nose eliminates snagging: This carabiner’s nose slots into a groove in the gate, allowing it to achieve full strength without a gate notch. This creates a clean internal profile to prevent snagging on gear, bolts or slings, for easier clipping and stripping of routes.
Ergonomic back design for positive handling and easy clipping: The Alpha’s shape fits naturally in the hand, and combines with its large gate opening to make the carabiner very easy to clip. Grooves on the back bar increase grip for confident handling.
I-Beam construction for optimum strength to weight ratio: I-Beam construction reduces carabiner weight without compromising strength. It is achieved through hot forging, which allows metal to be formed in complex shapes that improve functionality.
Hot forged from steel for strength and durability: Carbon Steel is used when very high strength and durability are more important than weight. Steel carabiners are often used in centre and wall environments where high wear and repeat falls are normal.

Specifications:
Gate Opening: 25mm

Certifications (standard):
EN12275:2013 B
EN566:2017

Certifications (with maillon):
EN12275:2013 B
EN566:2017
EN12275:2013

Weight:
Standard 12cm: 151g
With Maillon 12cm: 288g
Standard 18cm: 156g
With Maillon 18cm: 293cm
