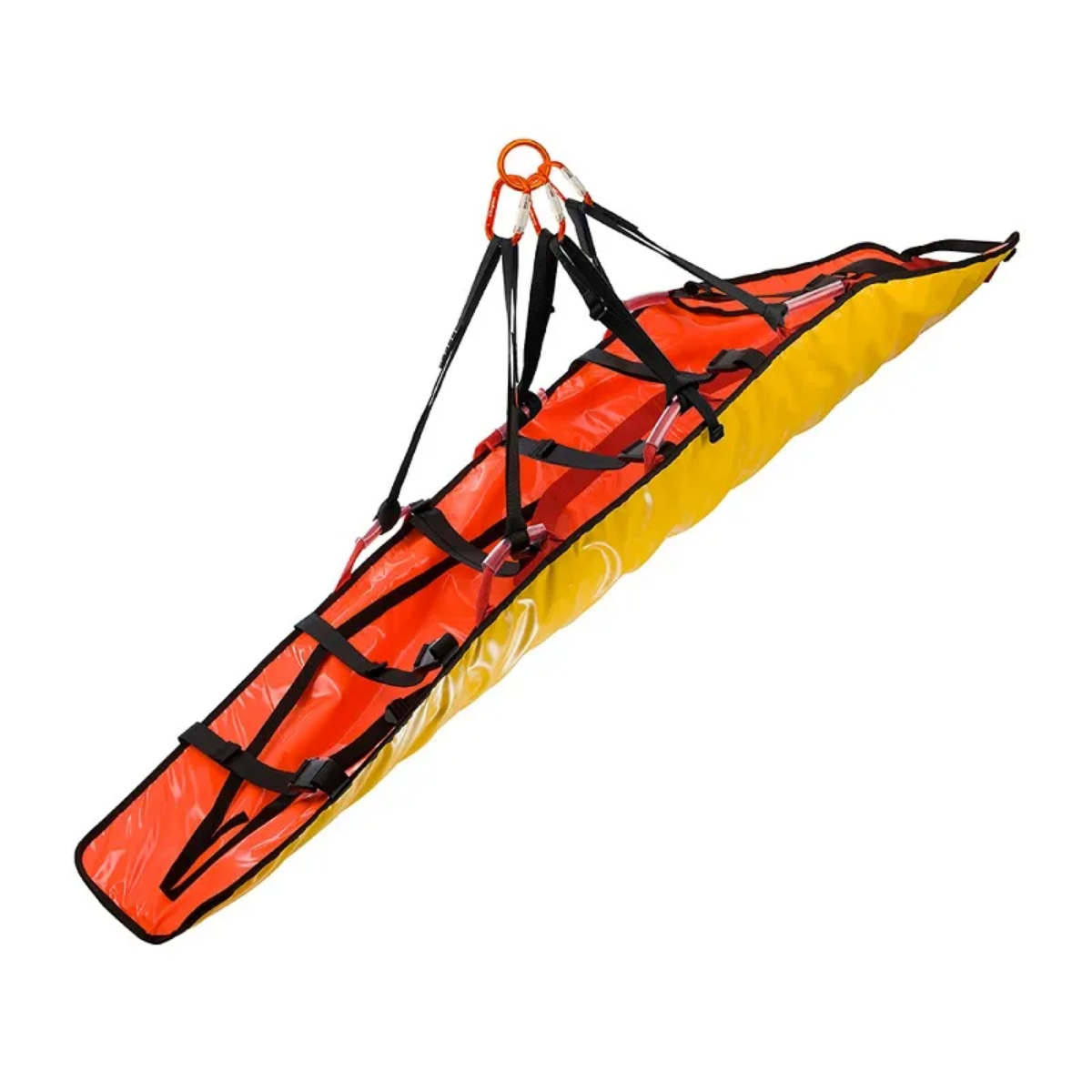

Chrysalis Casualty Stretcher

The Heightec Chrysalis Casualty Stretcher has six patient restraint straps with quick connect buckles to ensure the casualty is kept secure as well as one head restraint system. The integral harness is fitted with two quick connect buckles and can be adjusted with one hand. The retaining straps are aligned for rapid fastening in an emergency situation.

Made from reinforced coated fabric which gives unbeatable weight to strength. The full body casualty harness provides an unrivalled combination of fit, comfort and strength. Quick buckle system means using the harness is fast and simple.

Tested with 4 m fall with a test mass of 125 kg. For static vertical and horizontal lifting, SWL of 260 kg, based on a Factor of Safety of 10:1.

Stores flat to minimise movement of casualty when fitting. Adjustable foot stirrup and head strap can be fitted once the casualty is secure.
High abrasion resistance of the outer case and the high visibility design ensures ultimate protection of the casualty. The bright colours aid use in low light conditions. The tough fabric construction resists abrasion and water ingress and can be washed down after use for infection control.
The plastic internal sheet can be removed to enable the stretcher to be machine washed.
Once employed the integral harness is always connected to the lifting points whether in horizontal or vertical lift for complete casualty security.

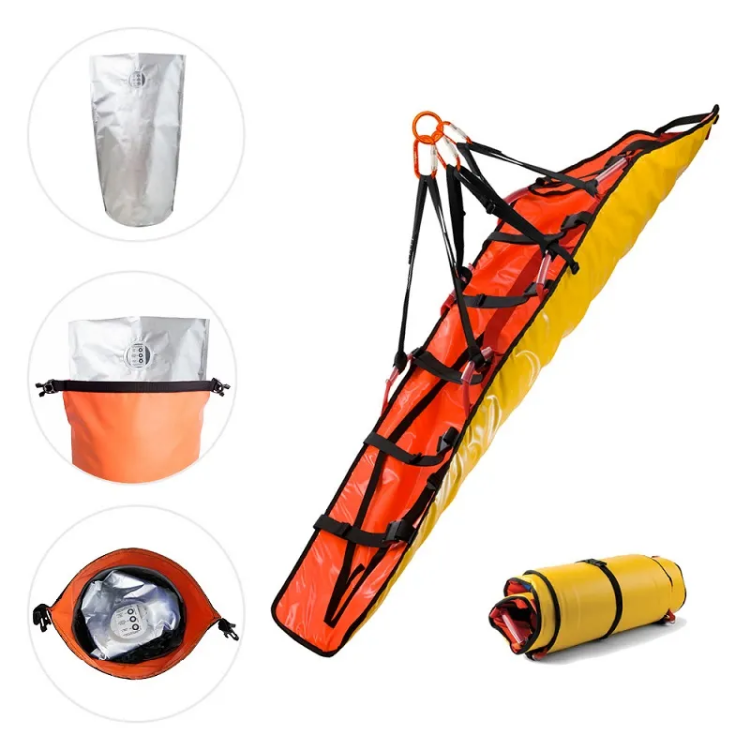

Supplied with bridle and KARI 50 durable waterproof PVC storage bag. The stretcher rolls up for compact storage and easy of transportation.
Metal lifting bridle attachment enables rescuer connection without risk of bridle damage.
Compatible with spine boards placed on or within the stretcher.

Features:
Tested with 4m fall, mass of 125 kg
For vertical or horizontal lifting and lowering
SWL of 260kg, based on a Factor of Safety of 10:1
Patented integral casualty restraint harness
Configured for rapid deployment
High visibility
High abrasion resistant and waterproof outer case
Low profile side handles aid handling with minimal risk of snagging
Spine board compatible
Comes rolled up into KARI 50L storage bag
Stretcher comes complete with lifting bridle and protective bag
Has 6 patient restraint straps to keep the casualty secure
1 head restraint system
Integral support stirrup for vertical lifting
Harness retained completely flat during storage
Minimal movement needed by casualty during fitting of harness
Removable interior stiffening sheet
All components machine washable

Specifications:
Material: Polyamide /polyester load bearing elements with PVC cover and plastic fittings. Stainless steel buckles.
EN Mass Test: 125kg with 4m fall
Loading: For static vertical and horizontal lifting, SWL of 260kg, based on a Factor of Safety of 1

Patented GB 2 403 422.
Product registered with the UK Competent Authority, MHRA, Class 1 Medical Device.
