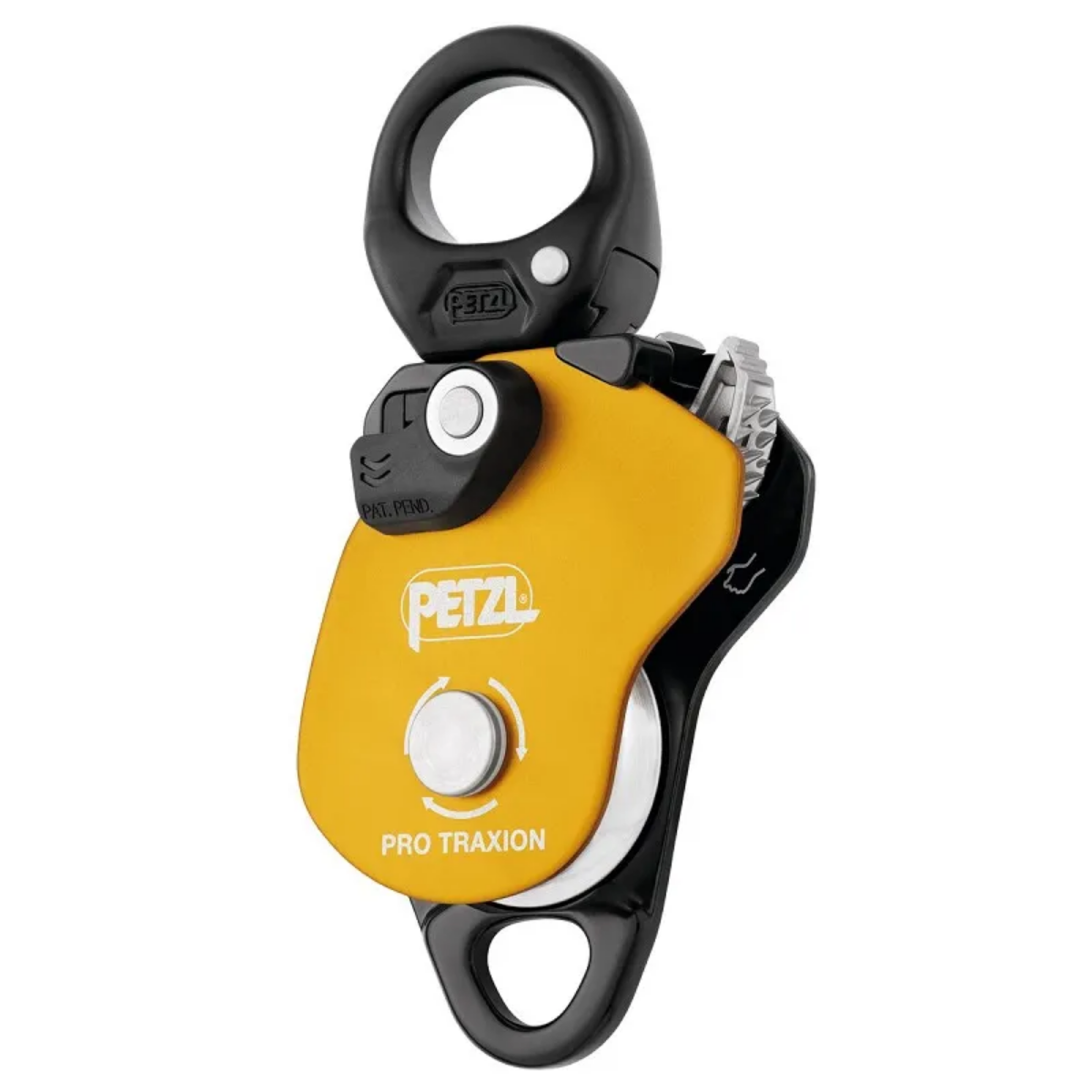

The Petzl Pro Traxion is a very high-efficiency, drop resistant progress-capture pulley with swivel. It is ideal for hauling heavy loads, as well as for use during big wall climbing and rescue.
Possible to open, even when attached to the anchor, the Pro Traxion progress-capture pulley has been designed for setting up haul systems. With a large diameter sheave mounted on sealed ball bearings and excellent efficiency, it is particularly suitable for hauling heavy loads. The swivel makes it easier to operate, allowing the pulley to be oriented under load and for direct connection of carabiners, ropes, or slings.
NEW (2024) VERSION:
Features:
Drop-resistant and easy to operate:
Triple-action opening of the moving side plate is quick and easy, even with gloves
Rope can be installed when the pulley is connected to the anchor
Red indicator provides a visual warning when the moving side plate is unlocked
Special side plate design protects the rope path
Designed for hauling heavy loads:
Large diameter aluminium sheave mounted on sealed ball bearings for excellent efficiency
Swivel allows pulley to be oriented under load
Versatile:
Swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging
Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
May be used as a simple pulley by locking the cam in the raised position
Auxiliary attachment point can be used to set up a haul system
Hole in the cam for installation of a remote control cord
Specifications:
Weight: 295 g

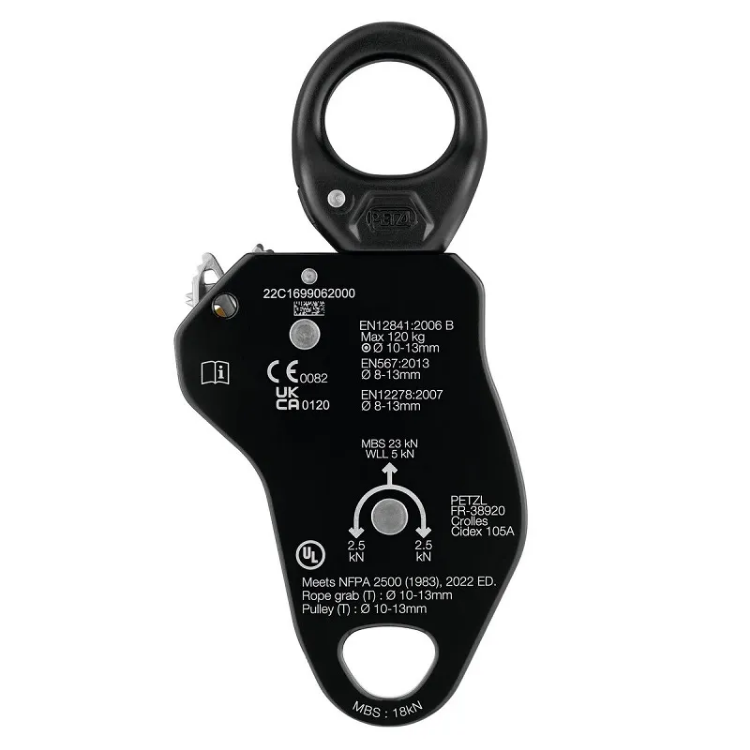

Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
Material(s): Aluminium, stainless steel, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 13 mm
Sheave type: Sealed ball bearings
Sheave diameter: 38 mm
Breaking strength - pulley: 11.5 kN x 2 = 23 kN
Breaking strength - rope clamp: 4 kN
Efficiency: 95 %
OLD VERSION:
Features:
Loss-resistant pulley:
Allows a rope to be installed when the pulley is connected to the anchor
Well suited for hauling heavy loads:
Large diameter aluminium sheave mounted on sealed ball bearings for excellent efficiency
Side plate locks when loaded and prevents opening of the pulley during use
Versatile:
Lower connection point for creating different types of hauling systems
Toothed cam with self-cleaning slot optimizes performance under any conditions: frozen or dirty ropes...
May be used as simple pulley by locking the cam in the raised position
Specifications:
Weight: 265 g
Certification(s): CE EN 567
Material(s): aluminium, stainless steel, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 13 mm
Sheave type: sealed ball bearings
Sheave diameter: 38 mm
Working load: 2 x 2,5 = 5 kN
Breaking strength: 2 x 11 = 22 kN
Working load as progress capture pulley: 2,5 kN
Breaking strength as progress capture pulley: 4 kN
Efficiency: 95 %
