Minimum fuss with maximum security and predictability. Captive Eye connectors, when incorporated into systems, give fixed connections that are almost impossible to misalign in 'real life' use. The circular hole allows the connector to move freely no matter what is stitched or connected to it, and can take a second connector should the need for a rescue point arise.
Features:
Captive eye for permanent connection
Sometimes it is essential for a connector to stay in the correct orientation or to be permanently attached to a system. The DMM captive eye connectors, with their textile friendly attachment holes, can be stitched into a rope or webbing loop, or swaged directly onto cable. They provide predicable direction of load and total security as the connector cannot be removed or misaligned.
Keylock clean nose for snag free connection
DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
Specifications:

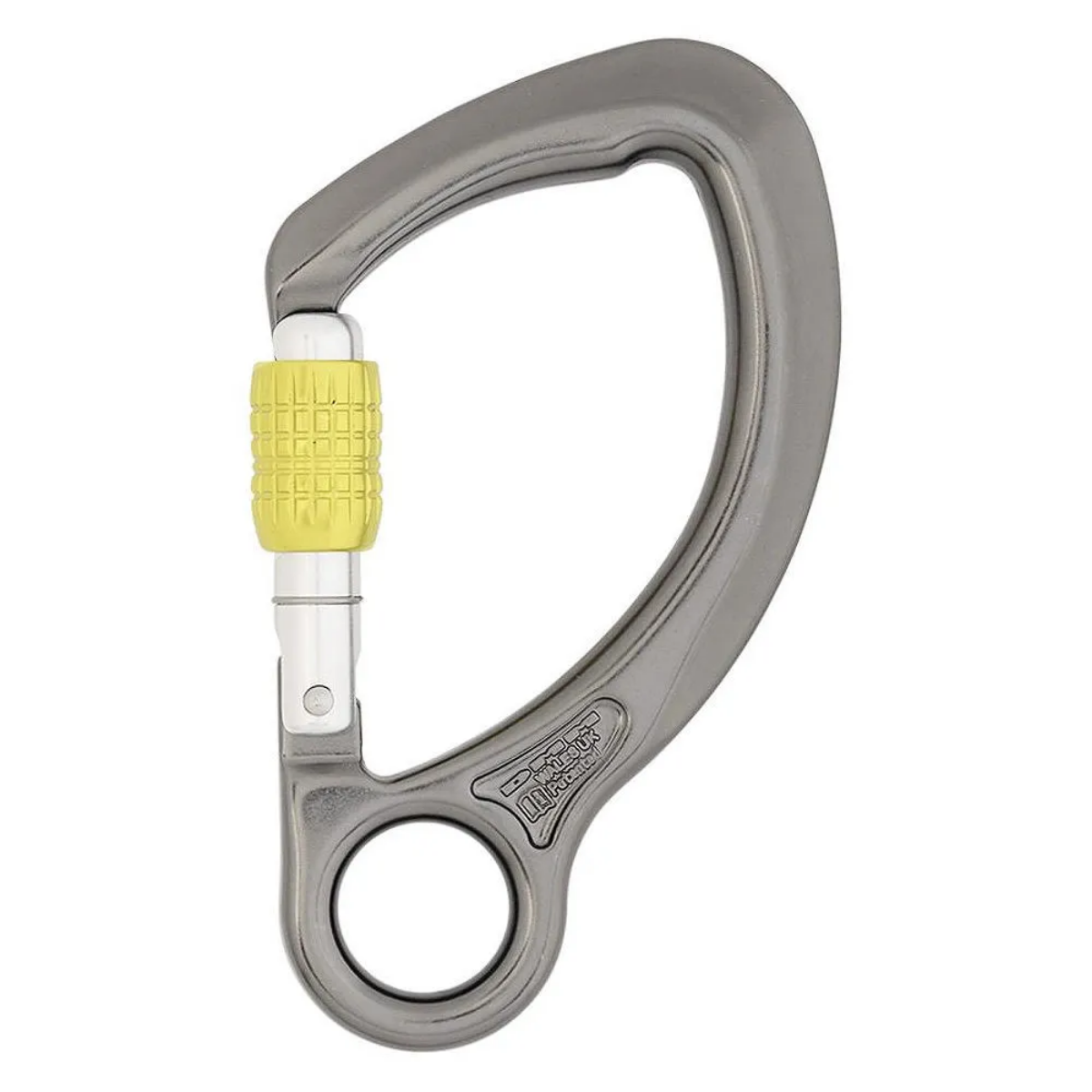

Captive Eye Screwgate:
MBS (major axis): 30kN
Dimensions: 77 x 138mm
Weight: 105g
Gate Opening: 24mm
Certification: EN 362:2004 T

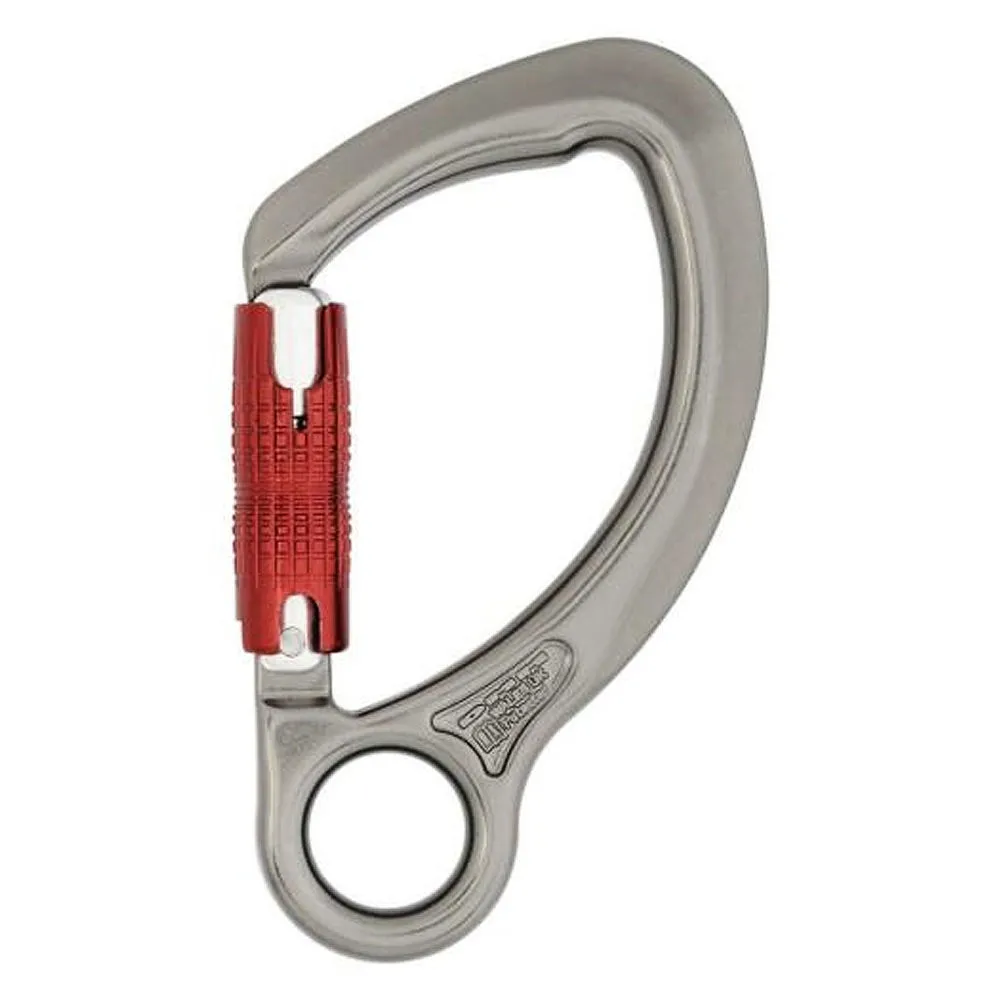

Captive Eye Locksafe:
MBS (major axis): 30kN
Dimensions: 77 x 138mm
Weight: 108g
Gate Opening: 23mm
Certification: EN 362:2004 T

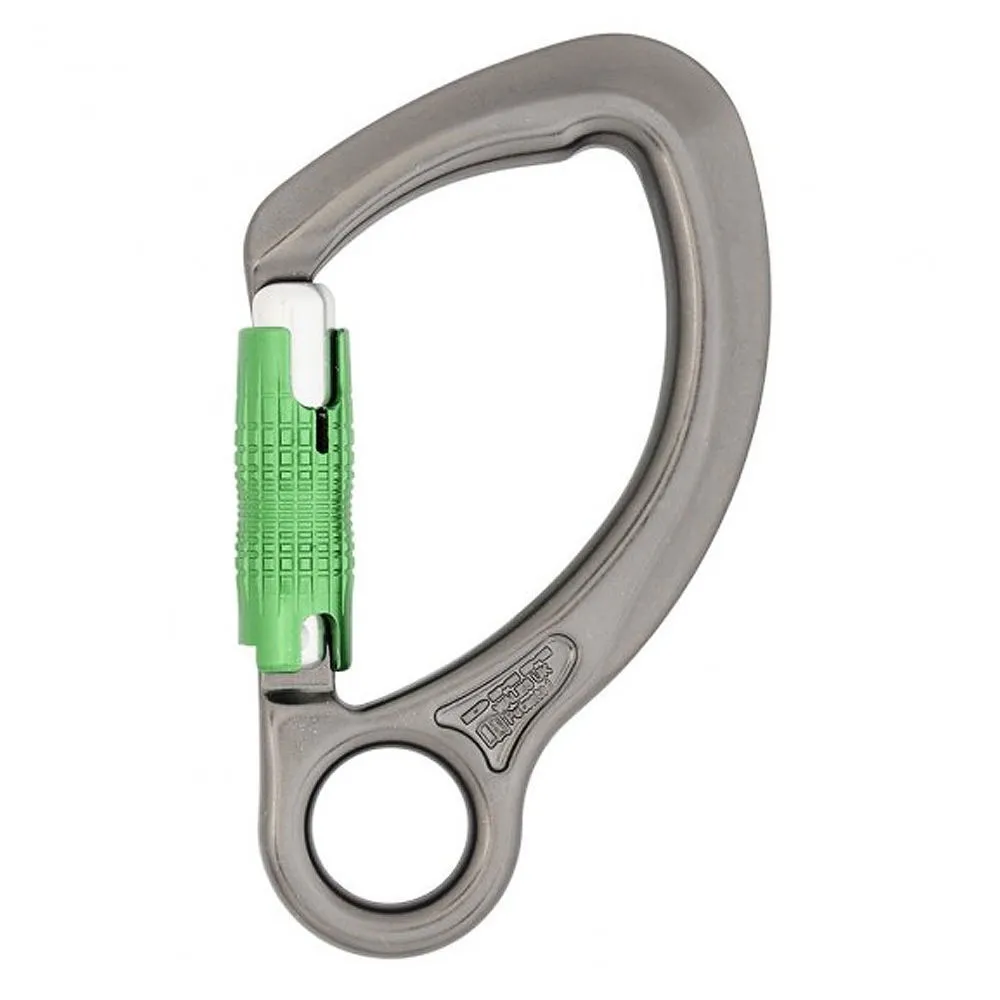

Captive Eye Kwiklock:
MBS (major axis): 30kN
Dimensions: 77 x 138mm
Weight: 107g
Gate Opening: 23mm
Certification: EN 362:2004 T
