The Petzl Am’D lightweight asymmetrical karabiner is made of aluminium. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Features:
D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
Aluminium carabiner is light, reducing the weight of equipment the worker at height needs to carry
May be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
Easier handling:
Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section:
Ensures an improved strength-to-weight ratio
Protects markings from abrasion
Available in three different locking systems:

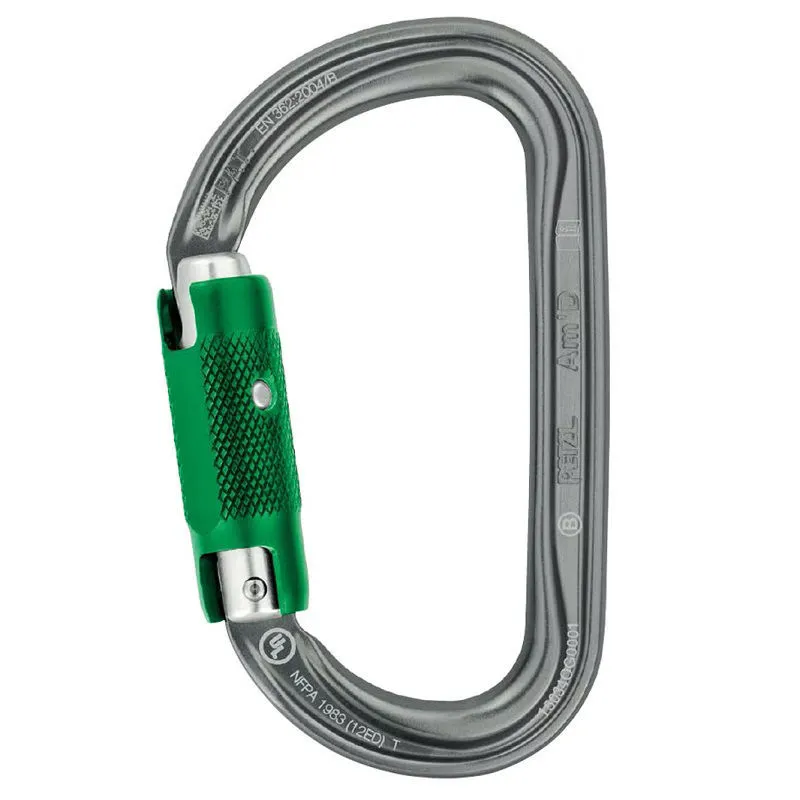

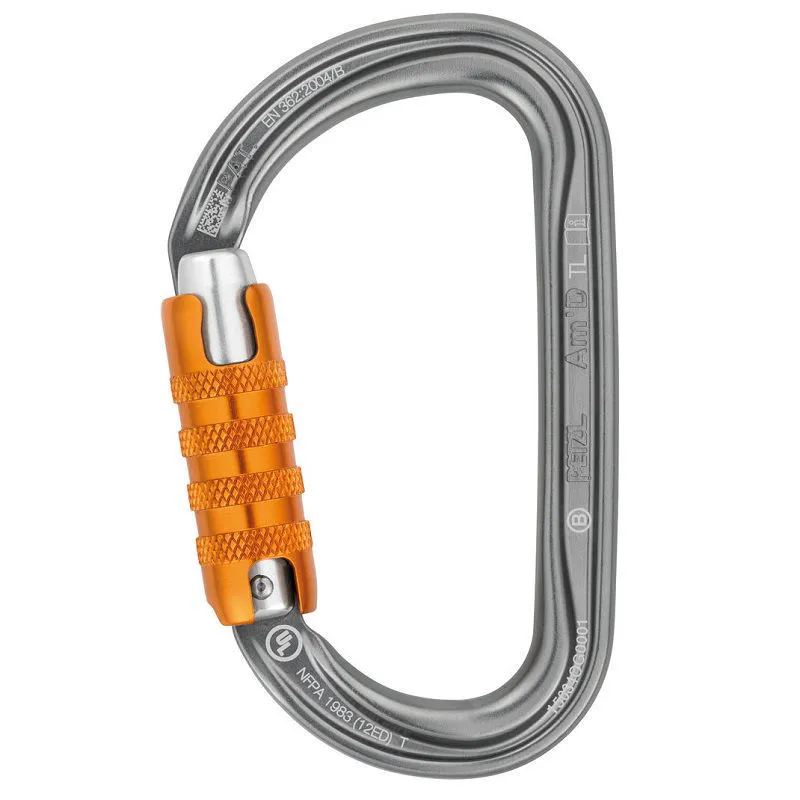

TRIACT-LOCK: automatic locking with triple-action gate opening

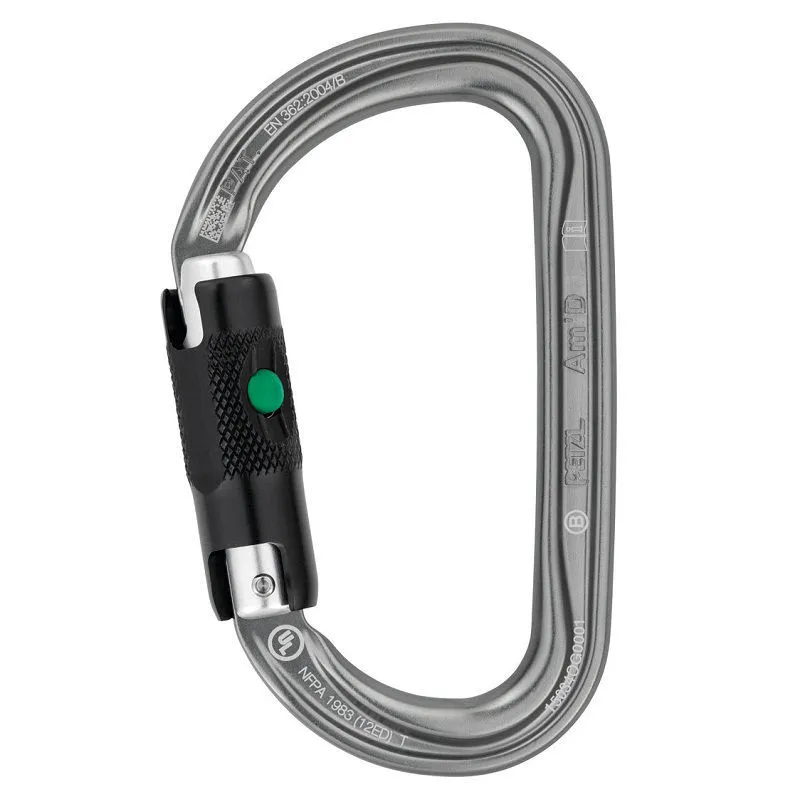

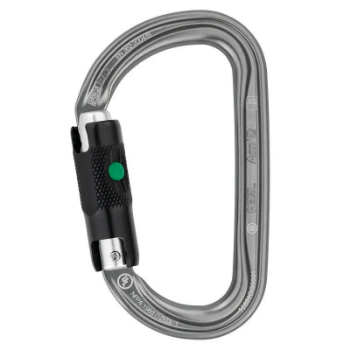

BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

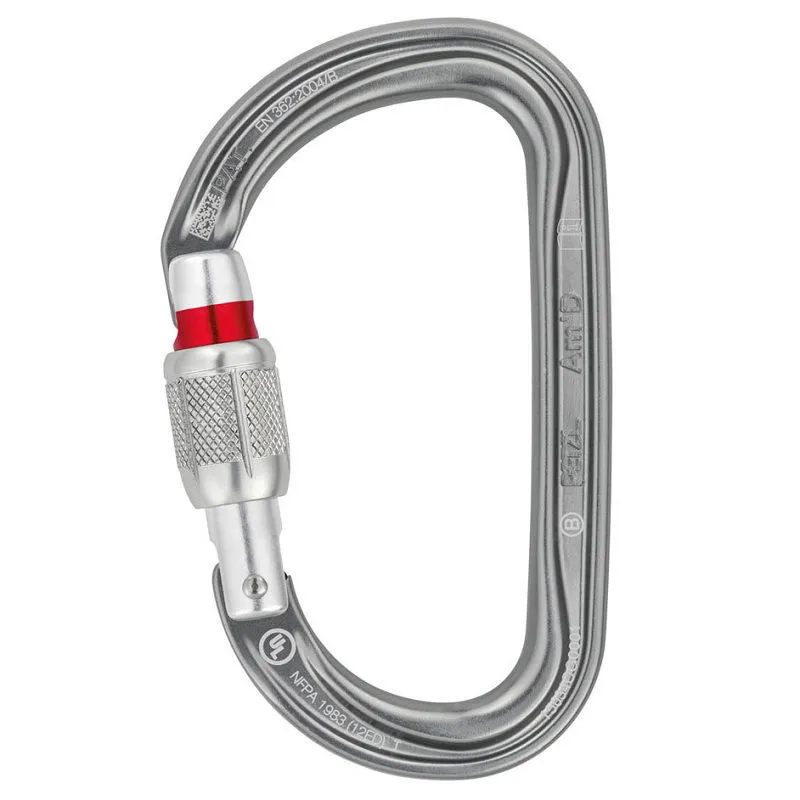

SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

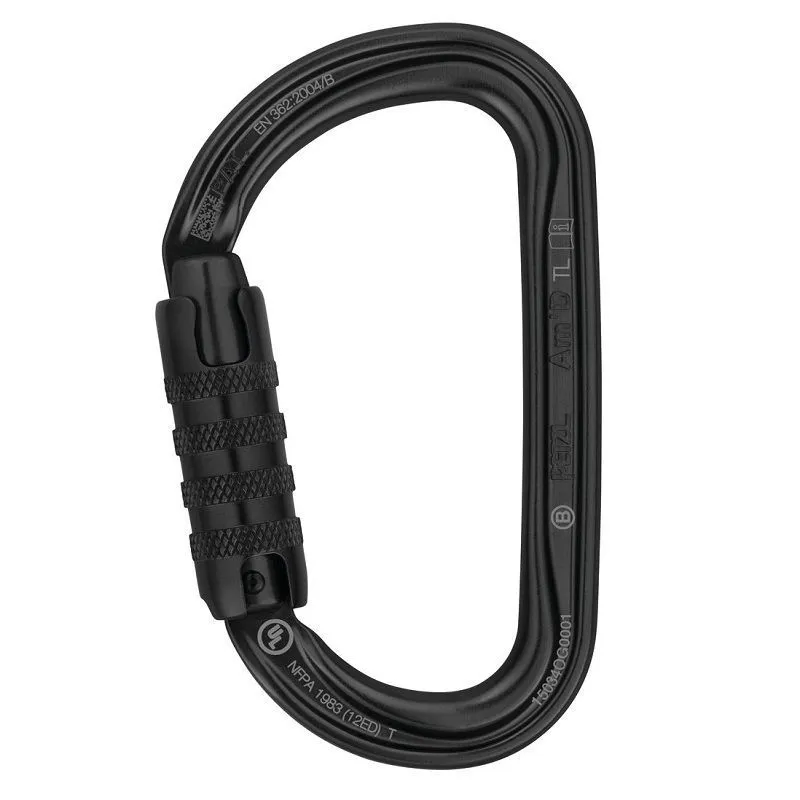

Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)
Specifications:
Material(s): aluminium
Certification(s): CE EN 362, EAC, NFPA 2500 Technical Use, UKCA
Triact-Lock:
Weight: 75g
Major Axis Strength: 27kN
Minor Axis Strength: 8kN
Open Gate Strength: 7kN
Gate Opening: 24mm
Ball-Lock:
Weight: 75g
Major Axis Strength: 27kN
Minor Axis Strength: 8kN
Open Gate Strength: 7kN
Gate Opening: 25mm
Screw-Lock:
Weight: 70g
Major Axis Strength: 27kN
Minor Axis Strength: 8kN
Open Gate Strength: 7kN
Gate Opening: 25mm
