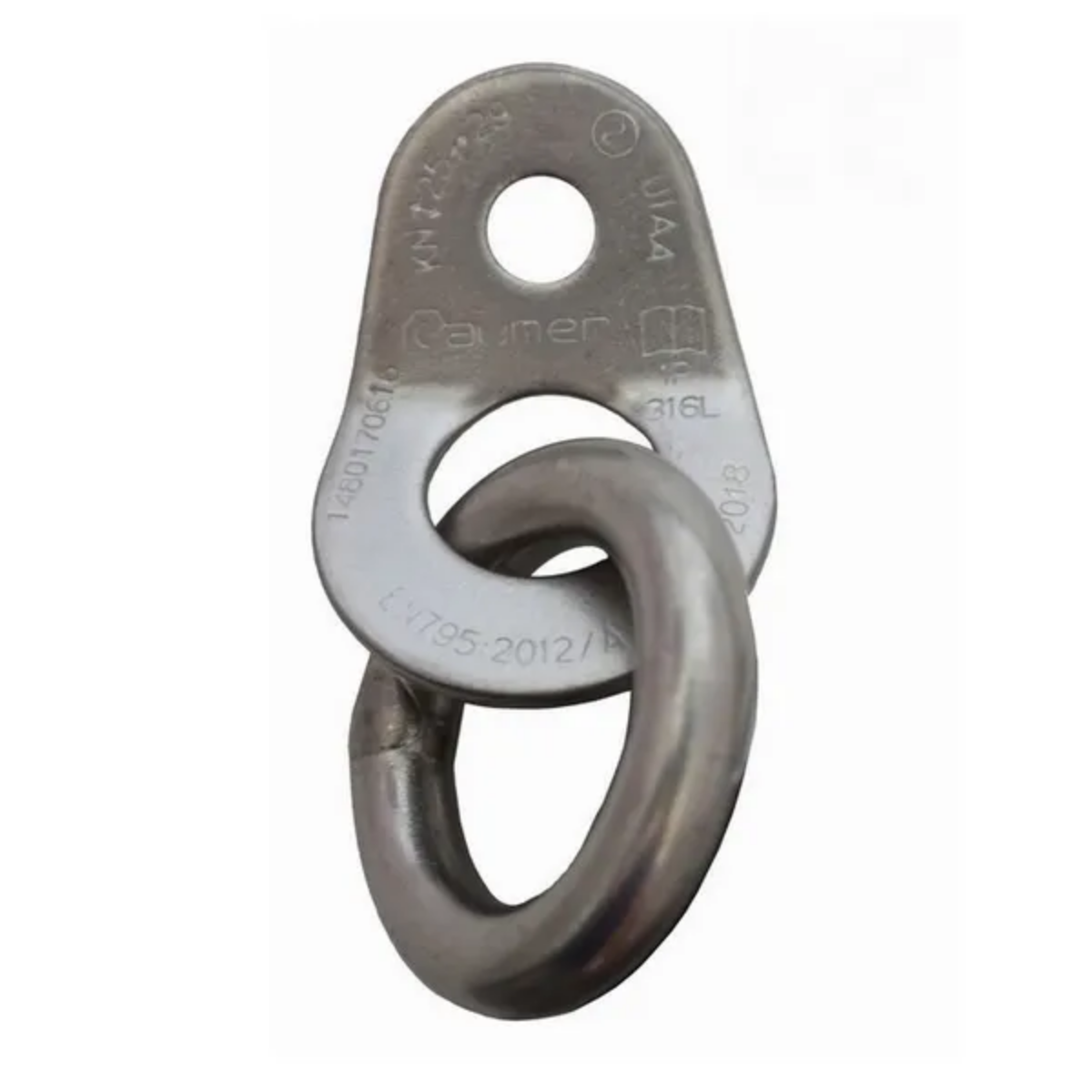

The Raumer Wing Hanger with Ring is a very popular mountaineering, climbing and canyoning anchor, used to equip simple, efficient and secure belays at a very competitive price.
Used in pairs (for obvious safety reasons); usually with one as the load-bearing anchor and the other as a passive back-up.
Features:Plate bent at 40°Stainless Steel Round Ring Ø 10 mmThe internal diameter of the ring is an optimum 32mm, designed to save weight and bulk without impacting on versatility.The ring hangs perpendicular to the face which means top-roping systems can be set up on either side and rope retrieval is easy: a very worthy advantage!The rounded ring hardly exerts any friction on the rope as the weight is spread over 360°.To meet the requirements of the EN 959, the plate is to be used with its Hang Fix
Specifications:CE EN 795: 2012 – Anchors type AComplies with EN 959:2007 – Rock anchorsUIAA 123 - 2Weight: 132gThick: 3.5mmDimensions: 44mm x 92mmStatic Shear Strength: 25kNExtraction Static Strength: 29kNUsable by 1 person at a timeWarranty: 3 years
Attention: this product is no longer CE but complies with the EN standard
The Fixe Stainless Steel Hanger is made from either Ecotri Zinc-plated Steel for indoor use or 316L Stainless Steel for outdoor use. Both of which make for a super-strong optimised hanger for building anchors, ensuring full contact and constant pressure when fitting to reduce the chances of it moving.
Expansion bolt for prospecting new routes and maintaining current routes.
The shank is knurled; This method of resin fixing has long been the most reliable and resistant, particularly when compared with resin anchors with transversal grooves or horizontal dimpled surfaces which are notoriously unreliable and dangerous! The anchor's eyelet can easily accommodate two carabiners simultaneously or a Ø10 mm folded and flattened rope.
The shank is knurled; this method of resin fixing has long been the most reliable and resistant, particularly when compared with resin anchors with transversal grooves or horizontal dimpled surfaces which are notoriously unreliable and dangerous! The anchor's eyelet can easily accommodate two carabiners simultaneously or a Ø10 mm folded and flattened rope.
The Raumer Rock Hanger is a hanger designed to comply with EN 795:2012, EN959:2007, and UIAA123. The hanger has a large hole allowing two carabiners to be attached at one time, has a matt grey finish to limit visual environmental impact, and is low cost in comparison to competitors. The material used in the Rock Hanger is AISI 316L, offers higher resistance to marine corrosion that the former AISI 304.
The shank is knurled; This method of resin fixing has long been the most reliable and resistant, particularly when compared with resin anchors with transversal grooves or horizontal dimpled surfaces which are notoriously unreliable and dangerous! The anchor's eyelet can easily accommodate two carabiners simultaneously or a Ø10 mm folded and flattened rope. Matt grey to minimise environmental and visual impact.
The Raumer Hang Fix expansion bolts have gone through a design phase focused on creating a technology which ensures expansion on an increased number of surfaces. Attention: On particularly soft rocks (such as sandstone) all expansion bolts are not recommended due to the unreliable nature of the supporting material. In these circumstances we recommend the use of fixed resin anchors (epoxy glue resin) or Multi-Monti screw anchors.
A classic belay station seen at the top of many climbing routes. Made in Italy from AISI 316L Stainless Steel, this station will proves to be invaluable. To meet the requirements of the EN 959 the plate is to be used with its Hang Fix. We recommend the use of our Hang Fix stainless steel M10L (Art.157).
