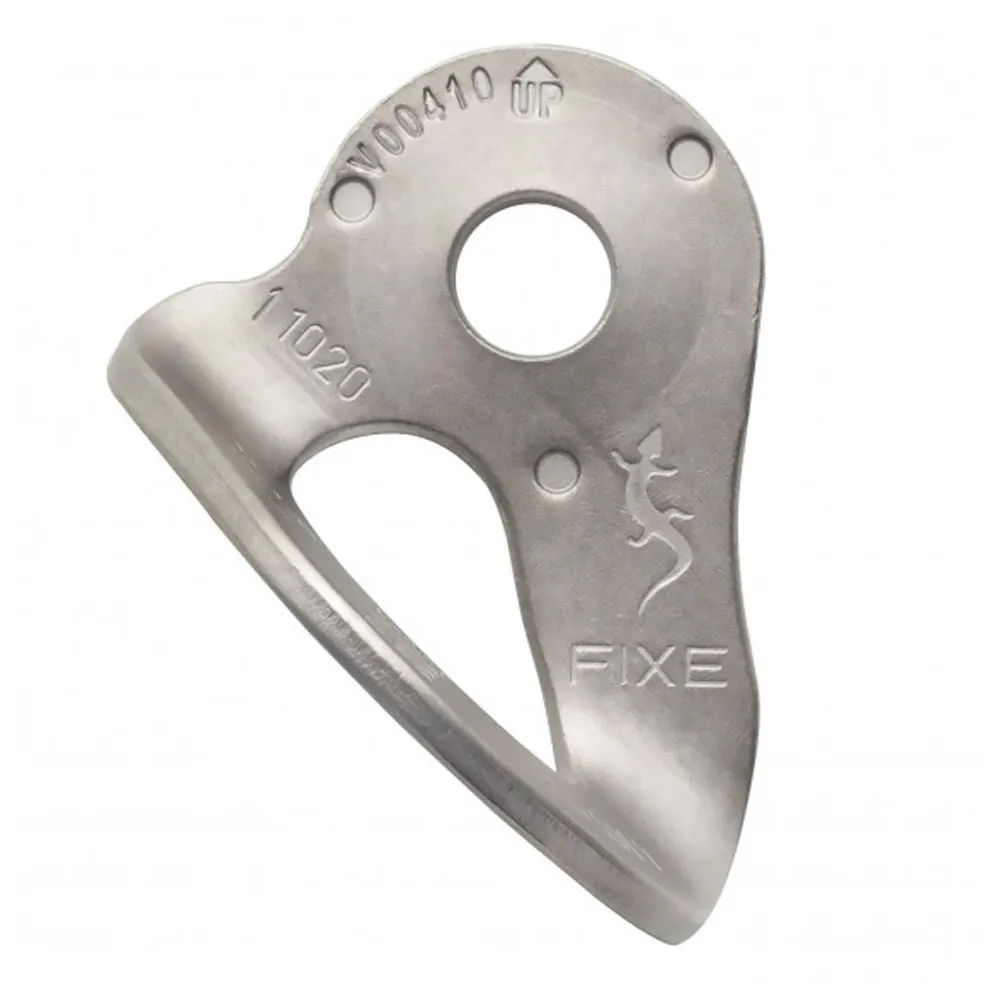

Stainless Steel Hanger

The Fixe Stainless Steel Hanger is made from either Ecotri Zinc-plated Steel for indoor use or 316L Stainless Steel for outdoor use. Both of which make for a super-strong optimised hanger for building anchors, ensuring full contact and constant pressure when fitting to reduce the chances of it moving.

All variants out of stock

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: Out of stock

Thanks to the shape of the Fixe Stainless Steel Hanger, when placed on a roof, the carabiner will be routed so that it never comes into contact with the projecting head of the bolt anchor.

Fixe Conical Washer - The rim of the bolt anchor hole protrudes slightly into a conical shape, away from the wall. The act of pulling the bolt anchor will generate a spring effect that provides constant pressure against the wall, multiplying the strength of the torque. It also allows having a better touch upon the torque tightening.

It maintains a constant pressure that expands the force between the bolt anchor and the wall. Over the years, bolt anchors can undergo small rotations, which lead to a space between the bolt and the wall, causing a movement in the hanger. The total of fixing pins and the conical washer allows the bolt anchor to be removed by rotating up to 45º without losing contact with the wall (previously it only supported 20º).

Fixing pin -By increasing the distance between the hole of the bolt anchor with the three fixing pins, a greater resistance (tightening torque) to the hanger once
installed is achieved. Applying more force to prevent the hanger from rotating
and becoming mobile.

Lighter - With a thickness of 3.5mm (previously 4mm) Fixe has managed to reduce the weight of the hangers that stand out for their lightness, reducing their weight by 12.5% in the 316L steel version. It has gone from 64g to 57g.

Specifications:
Breaking Load (kN): 25
Weight: 57g
Material: Ecotri Zinc-plated (indoor use)/ 316L stainless steel (outdoor use)
Diameter: 10mm
