HL18R

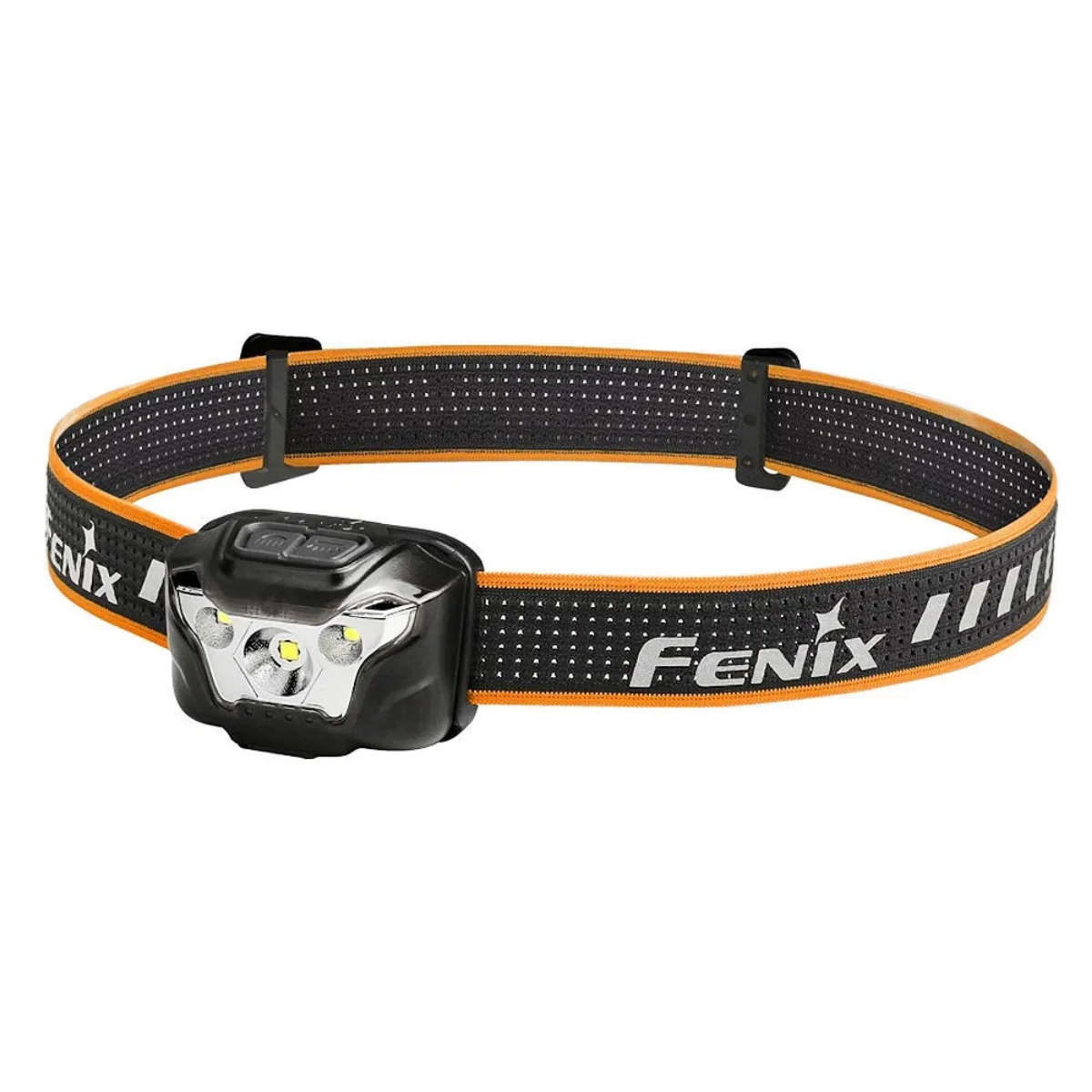

The Fenix HL18R headlamp has a maximum output of 400 lumens from the Cree XP-G3 warm white and Everlight 2835 cool white light LEDs. The light can be powered by the included 1300mAh Li-polymer battery pack or 3 x AAA (NiMH or alkaline) batteries.
Offering a multitude of outputs and modes, the HL18R offers a spot and floodlight in one neat package, allowing you to choose the ideal light setting for your application. The light is operated using a dual switch which provides quick and easy access to all the modes. In addition, the head torch features a lockout mode to prevent accidental activation when not in use.

Features:
Lockout function
Dual switches for easy and fast operation
Four spotlight plus two floodlight levels
Micro USB charging port, 5V/1A
Battery level indication
60° tilt mechanism directs the beam where needed
Made of quality plastics and aluminium

Specifications:
Length: 2.27" / 57.7 mm
Width: 1.67" / 42.3 mm
Height: 1.46" / 37 mm
Weight: 2.82 oz. / 80 g (including battery)
Spot Beam Angle: 13°
Flood Beam Angle: 84°

Brightness Levels:
Using Li-polymer battery:
Spotlight:
Turbo: 400 lumens - 8.5 hrs runtime
High: 130 lumens - 12.5 hrs runtime
Med: 70 lumens - 17.5 hrs runtime
Low: 30 lumens - 48 hrs runtime
Floodlight:
High: 30 lumens - 54 hrs runtime
Low: 4 lumens - 145 hrs runtime
SOS: 30 lumens - 72 hrs runtime

Using 3 x AAA batteries (alkaline or NiMH):
Spotlight:
Turbo: 400 lumens - 9 hrs runtime
High: 130 lumens - 14 hrs runtime
Med: 70 lumens - 22 hrs runtime
Low: 30 lumens - 38 hrs runtime
Floodlight:
High: 30 lumens - 56 hrs runtime
Low: 4 lumens - 150 hrs runtime
SOS: 30 lumens - 80 hrs runtime

Maximum beam distance 76 meters, waterproof to IP66 and resistant to impacts up to 1 meter.

Operation:
Press and hold either switch to turn the lamp on and off (low output is selected by default)
When on, single click the spotlight button for spotlight mode or the floodlight button for floodlight mode
In spotlight mode, single click the spotlight button to cycle through the modes, in order Low>Med>High>Turbo
In floodlight mode, single click the floodlight button to cycle through the modes, in order Low>High>SOS
With the lamp off, press and hold either switch for 3 seconds to enter and exit lockout mode

Includes: ARB-LP-1300 Li-polymer battery pack, headband, charging cable.

With a built-in, Li-polymer battery, the Fenix HL18R can be recharged via a micro USB port on the bottom of the headlamp. The light has a blue LED indicator which blinks to keep you updated on the charging process. The indicator also provides the battery level when not charging, simply single click either switch with the torch turned off. If all four lights come on, the battery is between 80% and 100%, if three lights show it is between 60% and 80%, two lights means between 40% and 60%, one light means between 20% and 40% and if one light flashes it means the battery is between 0% and 20%.
