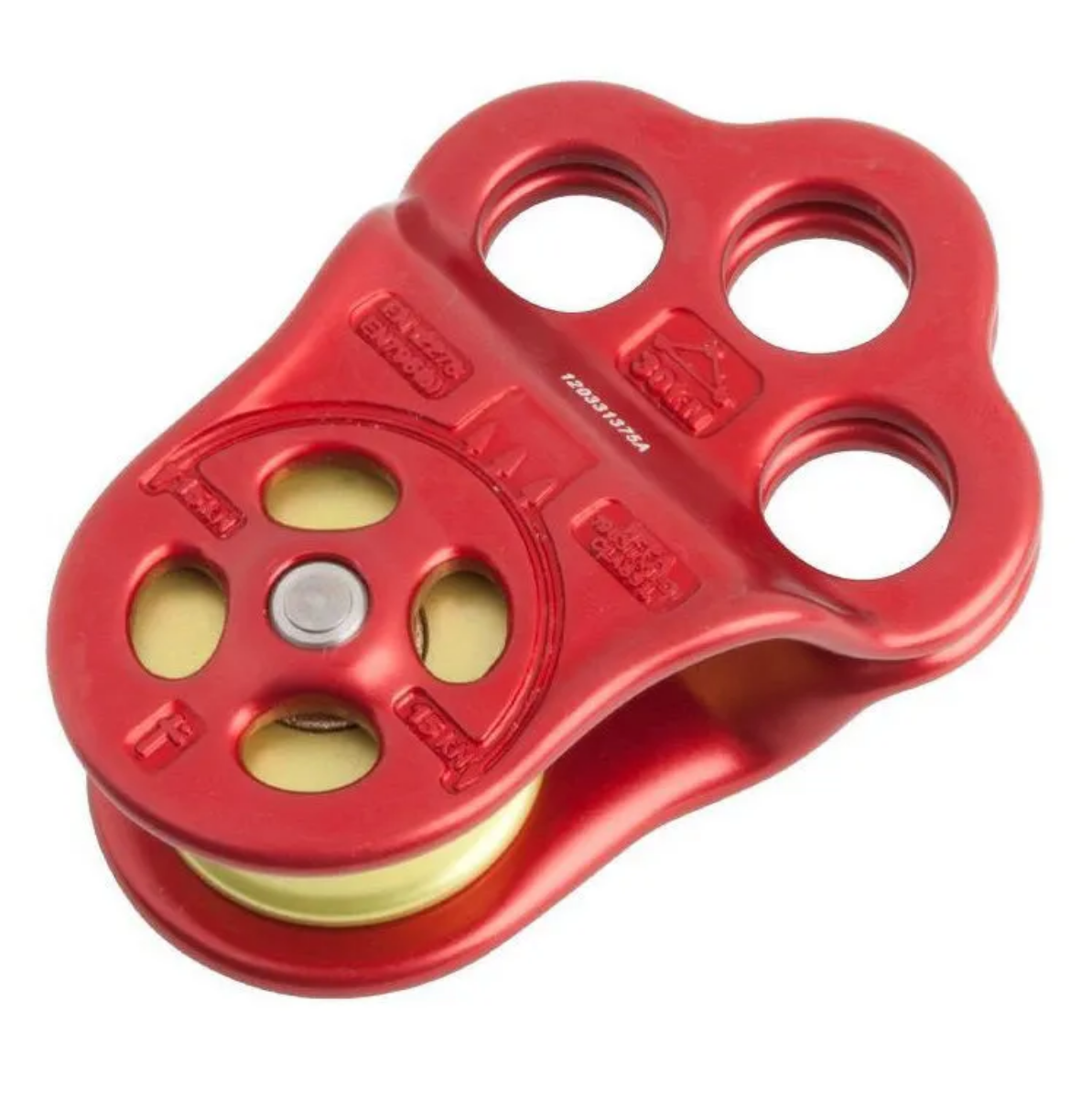

DMM Hitch Climber Triple Attachment Pulley

Specification & features:
Colour: Red
MBS: 36kN
WLL: 7kN
Dimensions: 94x68x33mm
Weight: 133g
Max Rope Diameter: 14mm
Conformance: NFPA 1983 (2012ED) G, EN 12278:2007

Three attachment points for versatile rigging options
Three attachment points allow the Triple Attachment to be rigged in a wide variety of ways, including off centre hanging to reduce wear on ropes.

Fairlead flares increase efficiency
The pulleys side plates are angled away from the sheave, giving a reduced bend radius and increasing efficiency if the ropes run over them.

Hot forged body reduces wear on ropes
The pulley body is hot forged to reduce the number of edges on the pulley. This reduces the amount of wear ropes experience when they run over the pulley body.

Stainless steel spindles for corrosion resistance
Stainless steel spindles increase pulley lifespan by resisting corrosion.

Rope friendly attachment points gives versatile connection options
All attachment points are curved, allowing safe connection with splices and knots as well as carabiners.

Bearings for efficient movement
Bearings are more efficient than bushings, reducing friction and making movement and control of loads easier.
