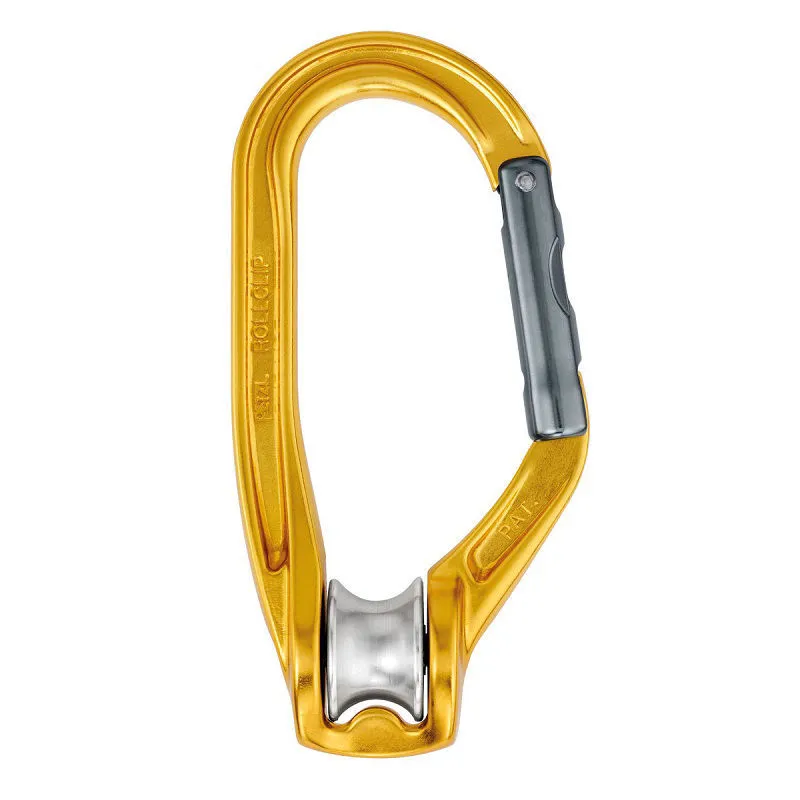

Features:Easier handling:Sheave mounted on sealed ball bearings for excellent efficiencyGate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchorMay be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flippingKeylock system prevents any accidental snagging of the carabiner when putting the pulley in placeH cross-section of carabiner:Ensures an improved strength-to-weight ratioProtects markings from abrasion

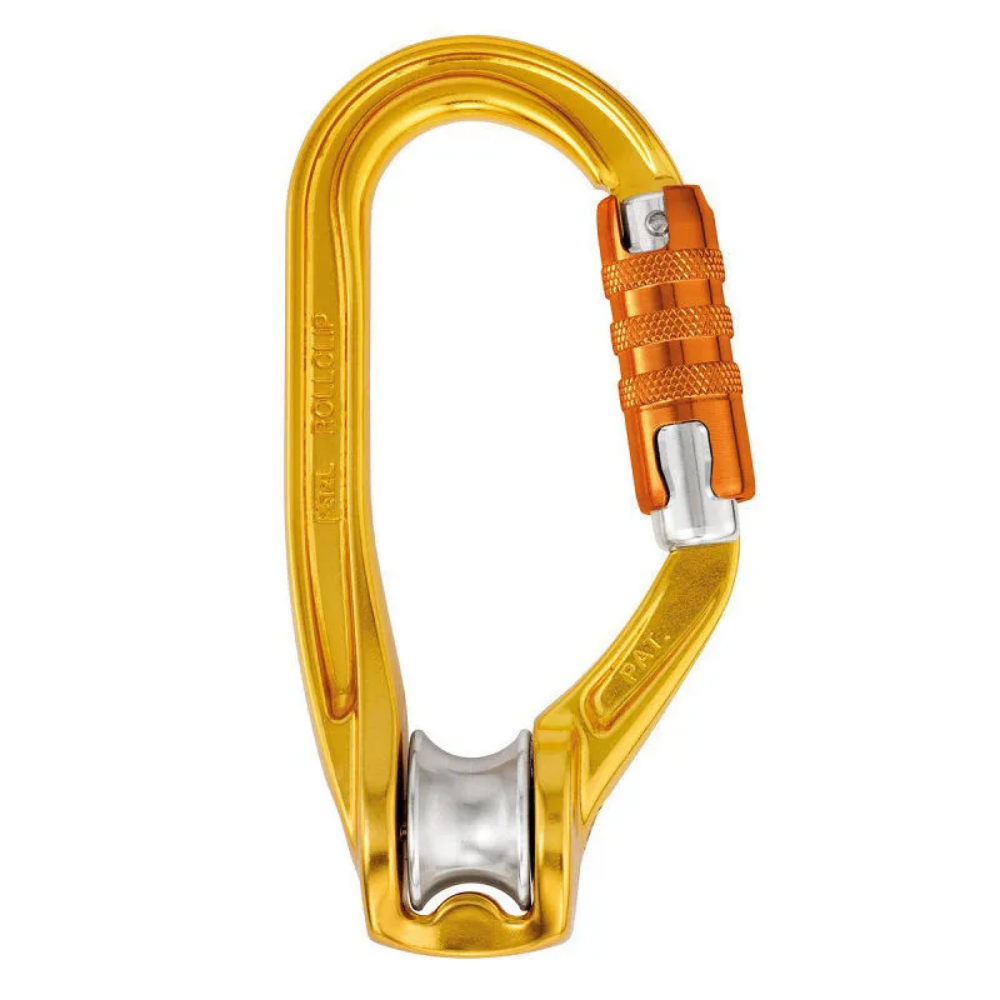

Available in versions with or without TRIACT-LOCK locking system
Specifications:Pulley Wheel Material: AluminiumPulley Rating (Breaking Load) kN: 16-20kNSheave Diameter (mm): 18mmPulley Efficiency: 85%Maximum Rope Diameter (mm): 13mmMinimum Rope Diameter (mm): 7mmGate Type: SnapgateGate Opening (mm): 25mmOpen Gate Strength (kN): 7kNMajor Axis Strength (kN): 20kNMinor Axis Strength (kN): 8kNWorking Load Limit (kN): 4kN
Conformity:CE EN12275 CE EN12278 EAC
Weight (g): 105g
The DMM Captive Eye ensures that in real life situations the connector will never be cross loaded through misalignment. Whatever the captive eye is stitched or connected to it can move freely thanks to the circular hole. The hole can also accommodate a second connector should the need for a rescue point arise.
The DMM Phantom is their ultimate trad and alpine screwgate Karabiner, and when you hold those 42 grams you will understand why! They claim they could have made it even lighter, but did not want to compromise the handling or strength. As you can see from the specification below the strength is still impressive and the gate opening reasonable for a small D shaped biner.
The DMM Revolver is certified for use as both a karabiner and a pulley. It is the same as DMM's standard Revolver karabiner, but it features a locking gate which provides extra security. There is a small wheel in the rope location groove to reduce rope drag, allowing the rope to run more efficiently through the karabiner.
A revolution in more ways than one! The DMM Revolver wire gated karabiner features a small wheel in the rope location groove. The result is a reduction in rope drag of up to 30%, which can, in effect, reduce the weight of your rope. A Revolver on your rack lets you reduce rope drag and make efficient mechanical advantage systems without the need for additional devices.
The DMM Shadow is a D shaped karabiner featuring an anti-snag keylock nose, is easy to handle, and light and strong thanks to its I-Beam technology. It is great for racking, rigging and rope-work. The DMM Shadow carabiner is a high-performance climbing accessory that combines strength, versatility, and reliability.
DMM have taken their best loved Shadow karabiners and coloured them in! This is to reduce confusion on the rock and simplify systems, plus it adds some razzle dazzle to your rack! Each karabiner looks very different, even in poor lighting - making it easier to distinguish what is what. These are suited for climbers of all abilities, who want easy identification of kit.
The DMM Spectre wiregate karabiner features I-Beam construction for reduced weight, a shrouded nose for added security, and generous rope radii for smooth rope running and softer catches in a fall. Versatility and a broad feature set make the Spectre an ideal starting point for a climbing rack.
The Zodiac 12mm Keylock is DMM's flagship rigging karabiner. It's extremely strong and therefore suited to heavy use situations like heavy duty rigging, rescue loads and group instruction, where toughness and strength are key. The clean nose gate uses DMM's patented Taperlock design and their toughest barrel to give very strong gate open and side face strengths.
