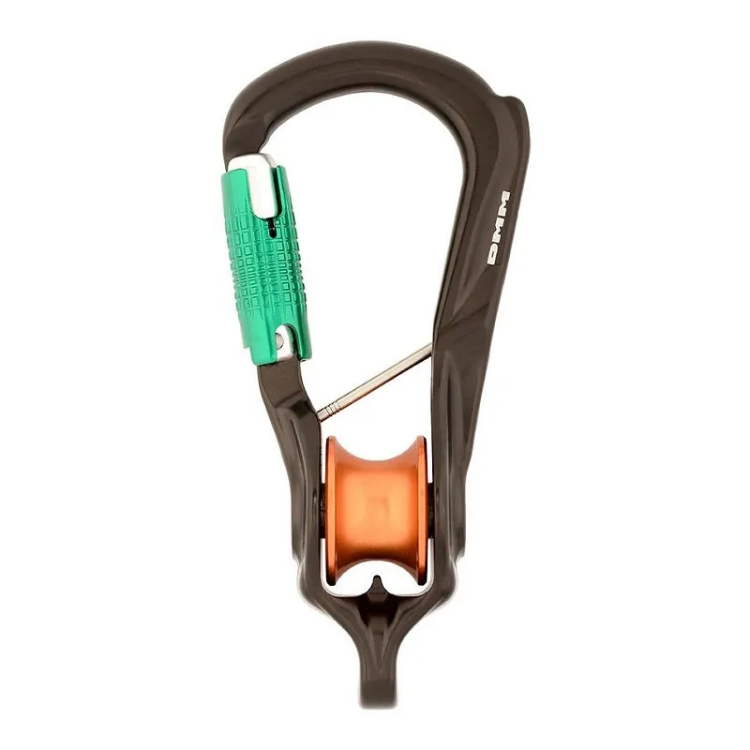

The DMM Revolver Rig is a connector with an integrated pulley sheave, designed to minimize friction and maximize efficiency in rope systems. With a high-efficiency roller bearing sheave, removable captive bar, and full-strength textile-friendly becket, it’s ideal for rescue, hauling, and rope access. Available with multiple locking gate options including Screwgate, Kwiklock, Locksafe, Durolock, and ANSI-rated versions for added safety in demanding environments.

All variants out of stock


The DMM Revolver Rig combines the strength of a connector with the efficiency of a pulley, making it a versatile and professional-grade tool for rigging, hauling, and rope access work. Its high-efficiency roller bearing sheave reduces friction, while the large sheave tread diameter ensures a rope-friendly bend radius, preserving rope life and improving system performance. The full-strength becket accepts most connectors or direct textile attachments, giving users flexibility in setup. The threaded removable captive bar keeps the carabiner correctly oriented, and the uniquely profiled spine further aids proper alignment during complex operations. Available with a range of locking gate options, from manual Screwgate to multi-action ANSI-certified Locksafe and Kwiklock versions, the Revolver Rig ensures safety and compliance across different working environments. Whether in technical rescue, rope access, or hauling systems, this connector delivers strength, efficiency, and reliability.

Features:
Integrated pulley sheave for reduced friction and smoother rope handling
Large sheave tread diameter for rope-friendly bend radius
High-efficiency roller bearings for reliable performance under load
Full-strength becket for connectors or textile attachments
Removable captive bar ensures secure orientation
Keylock nose for snag-free clipping/unclipping
Profiled spine designed to maintain correct alignment
Available with multiple locking gate options for tailored safety

Locking Gate Types:

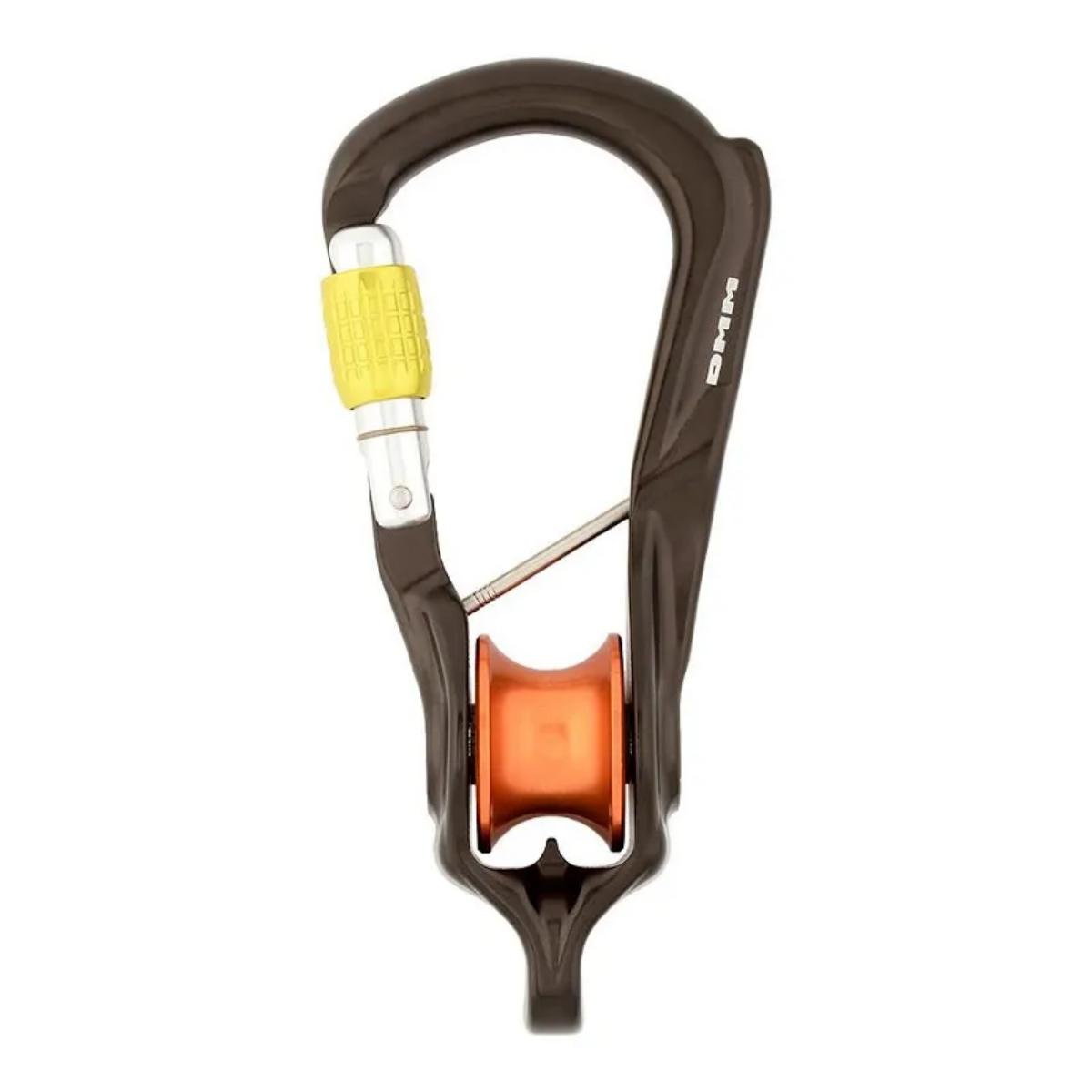

Screwgate: Manual lock requiring screwing/unscrewing to secure
Kwiklock: Auto-locking, two actions to open
Locksafe: Auto-locking, three actions to open

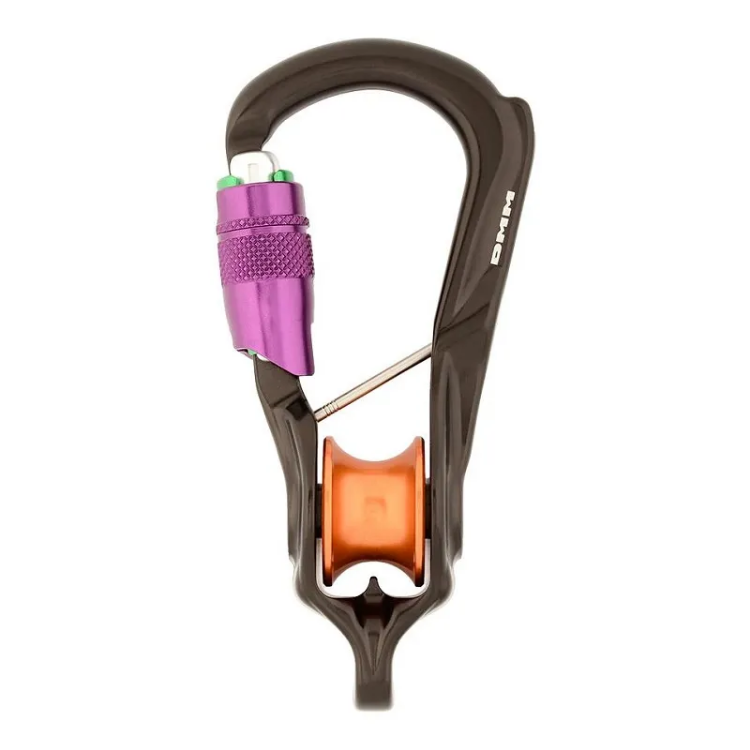

Durolock: Auto-locking, four continuous operations required to open
Kwiklock ANSI: Same as Kwiklock, ANSI-rated for >16kN minor axis, side load & gate face strength
Locksafe ANSI: Same as Locksafe, ANSI-rated for >16kN minor axis, side load & gate face strength

Specifications:
Dimensions: 75 × 161 mm
Weight: 196 g (Screwgate) / 203 g (Locksafe) / 213 g (Durolock)
MBS (Major Axis): 25 kN
WLL: 5 kN
Sheave Diameter: 36 mm
Gate Opening: 23 mm (Screwgate) / 22 mm (Locksafe) / 21 mm (Durolock)
Certification: EN362:2004 B/T, EN12278:2007
