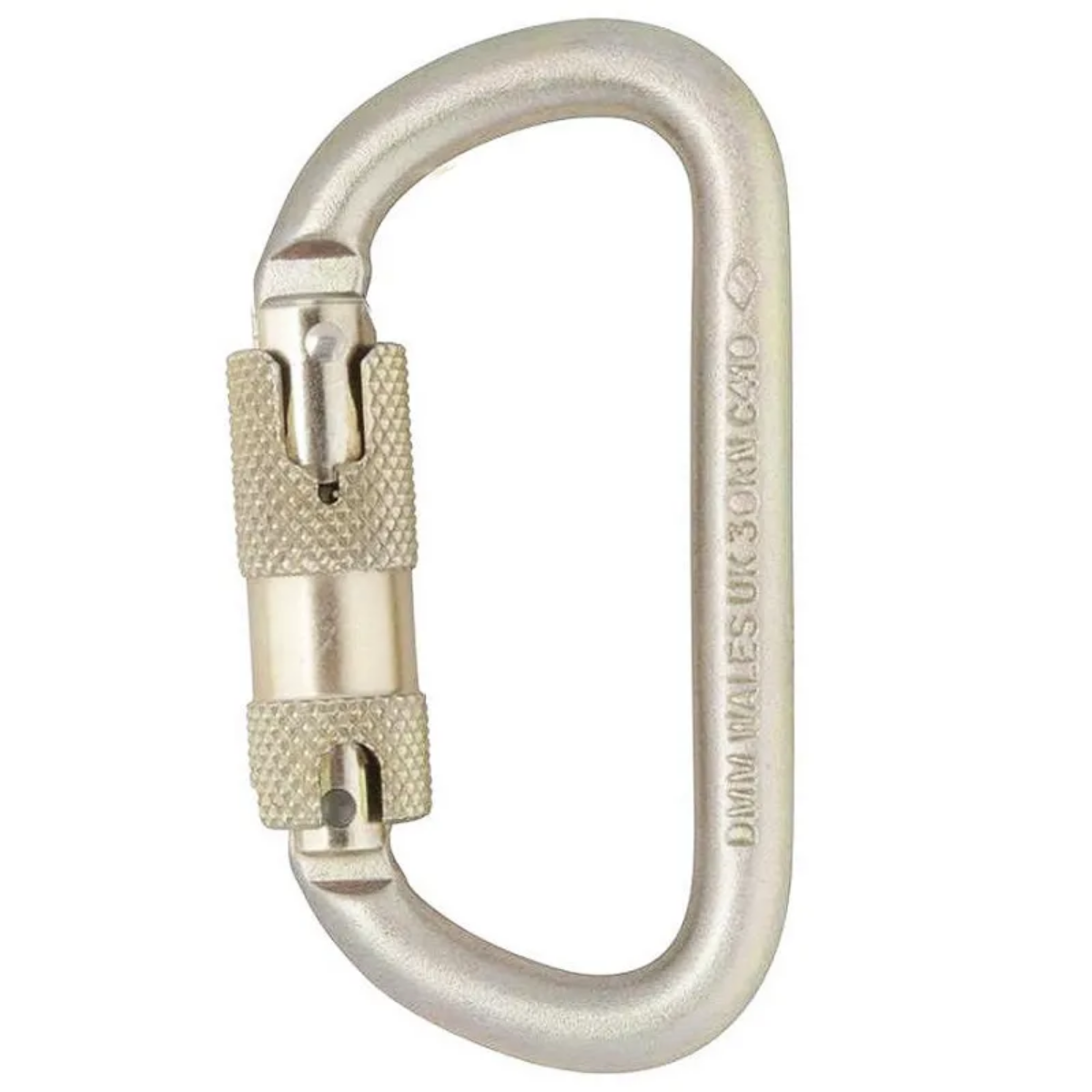

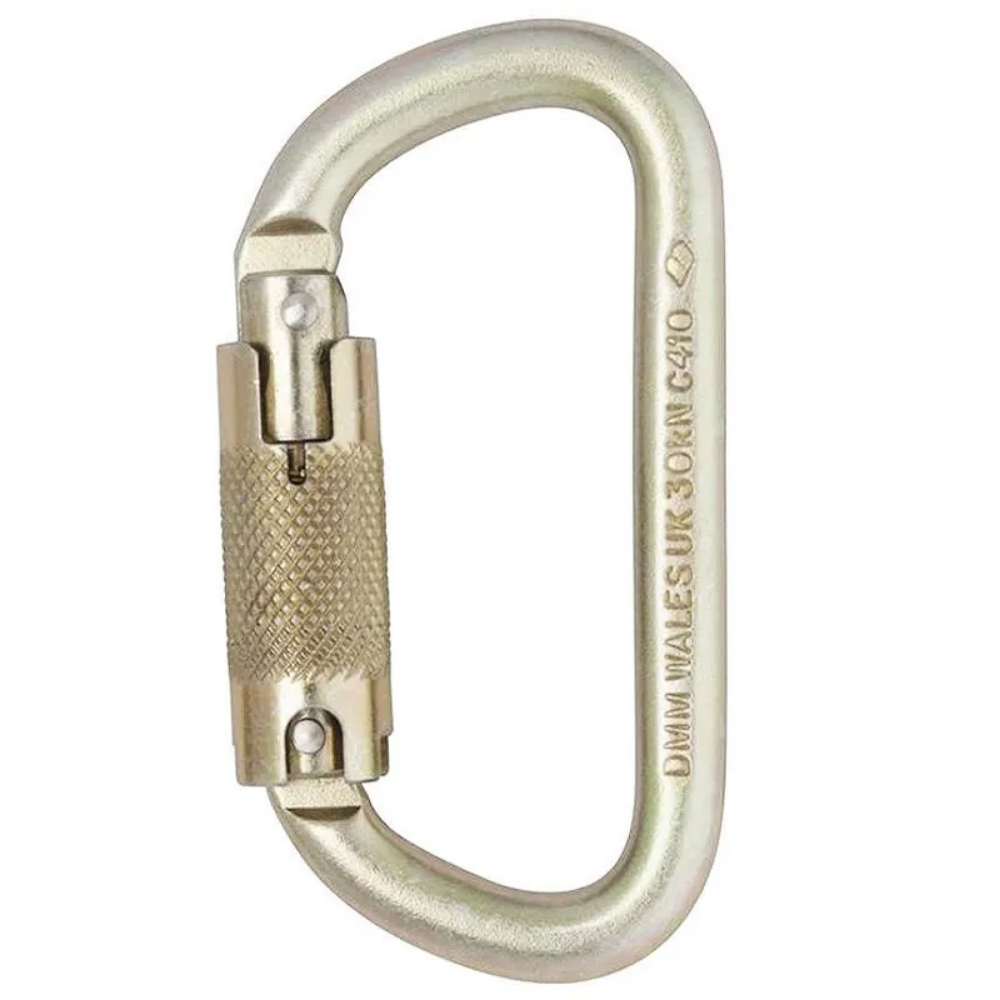

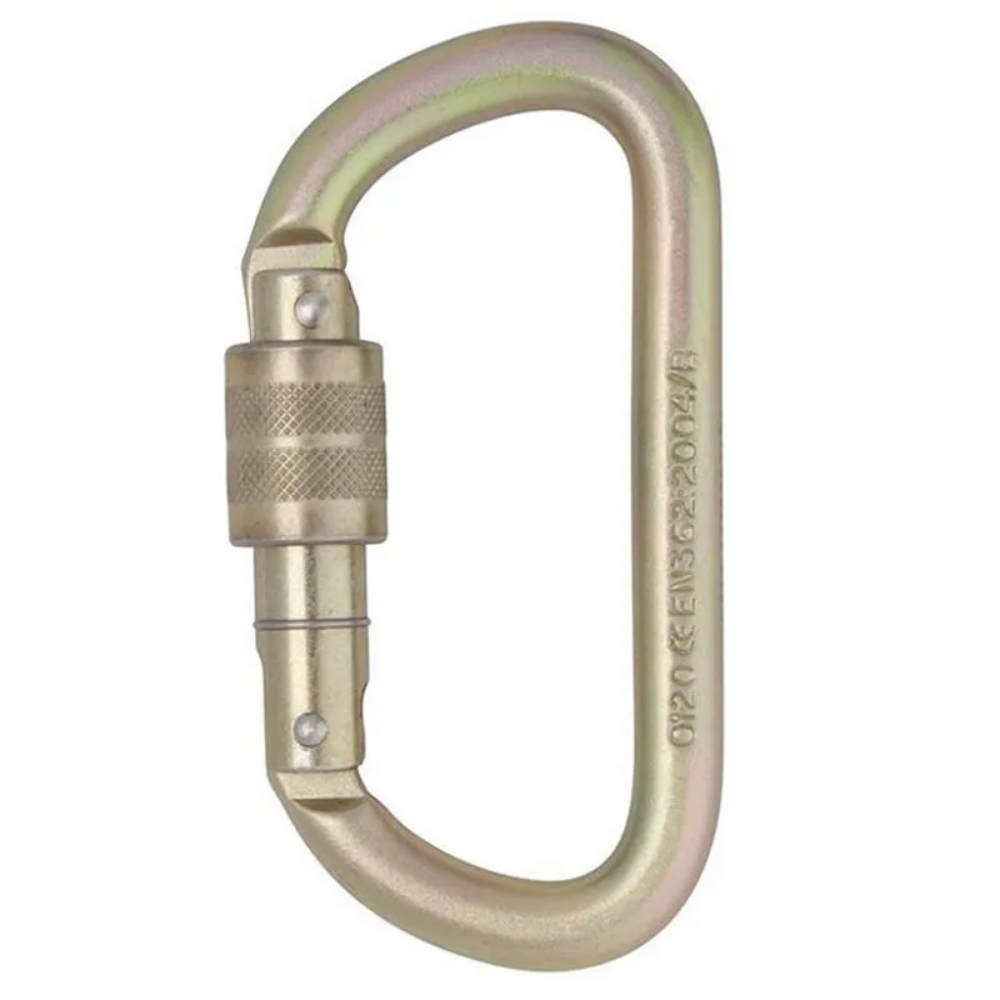

The DMM 10mm Equal D connector strikes a perfect balance between strength, weight and usability. The subtle D shaped back design helps maximise strength by placing the load close to the spine of the karabiner, making it ideal for applications requiring a rugged, compact and strong connector.
This karabiner is still manufactured with the same cold forging process along with the hear treatment for added strength.
D-Shaped for simplicity; loads connector along the major axis: D-shaped connector bodies are designed to force the loads closer to the spine of the connector (the strongest orientation), therefore maximising strength. These are probably the most basic of all connectors in terms of shape, but this makes them a perfect choice in applications where strength and simplicity are paramount.
Features:
Steel karabiner
Locking karabiner
Cold forged
3 locking variations
10mm Construction
Zinc Plated
Ideal for belaying
15mm gate opening
Individually marked serial numbers
Specifications:
MBS (major axis): 30kN
MBS (minor axis): 9kN
MBS (gate open): 10kN
Dimensions: 54 x 105mm
Gate Opening: 15mm
Weight:
Kwiklock: 187g
Locksafe: 190g
Screwgate: 172g
Certifications:
Kwiklock: EN362:2004 B
Locksafe: EN 362:2004 B
Screwgate: EN362:2004 B / EN12275:2013 B
