All variants out of stock

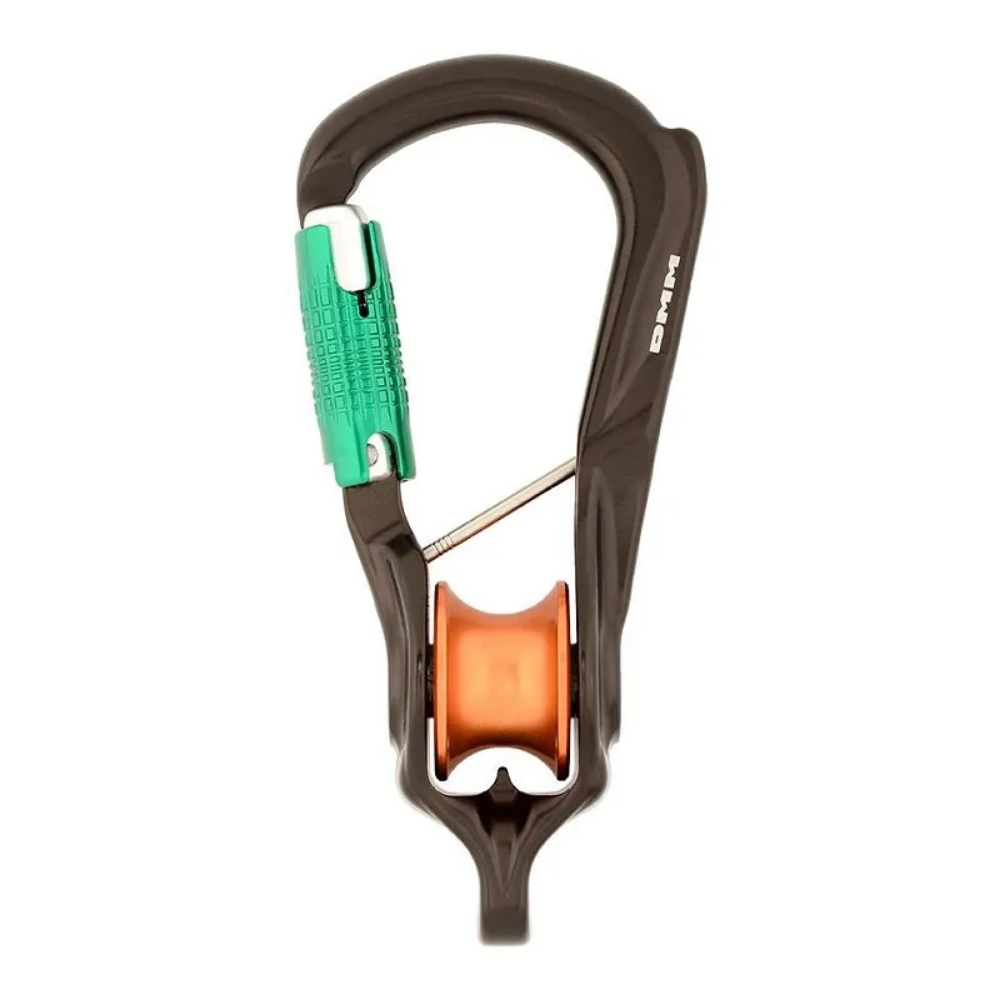

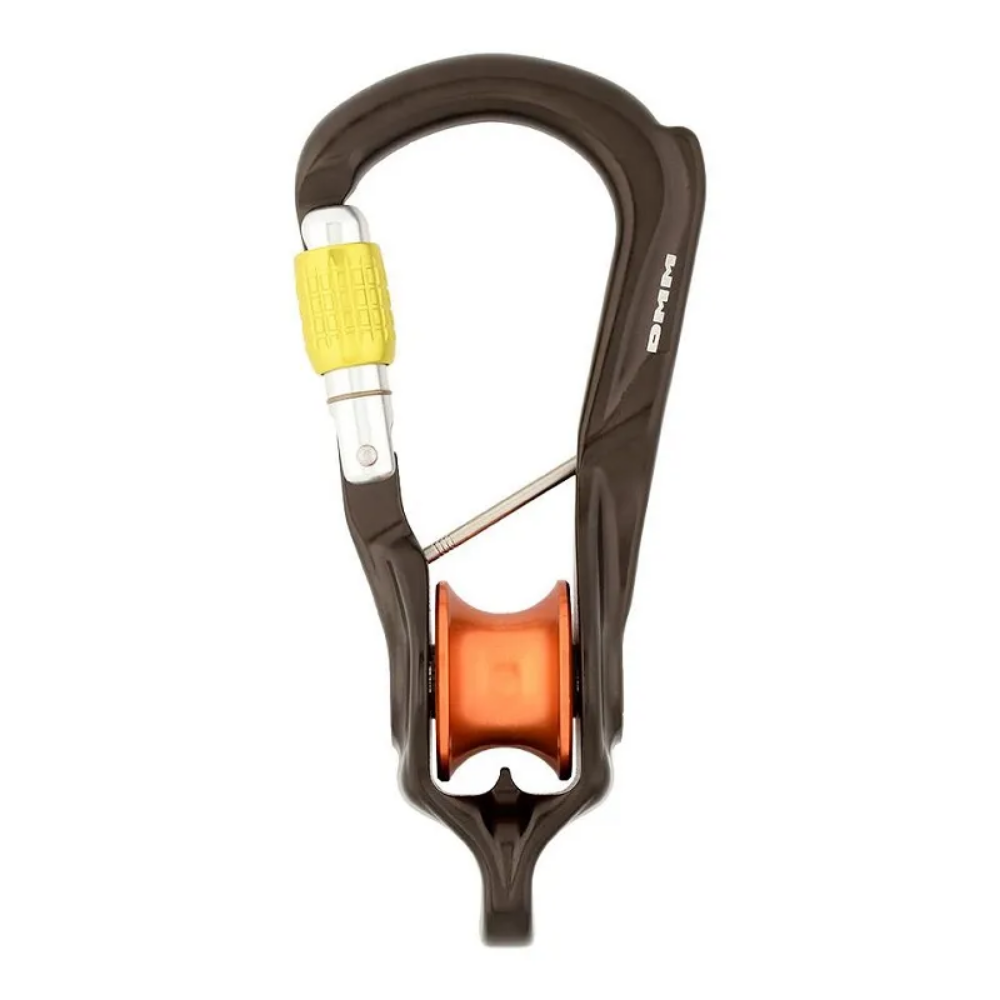

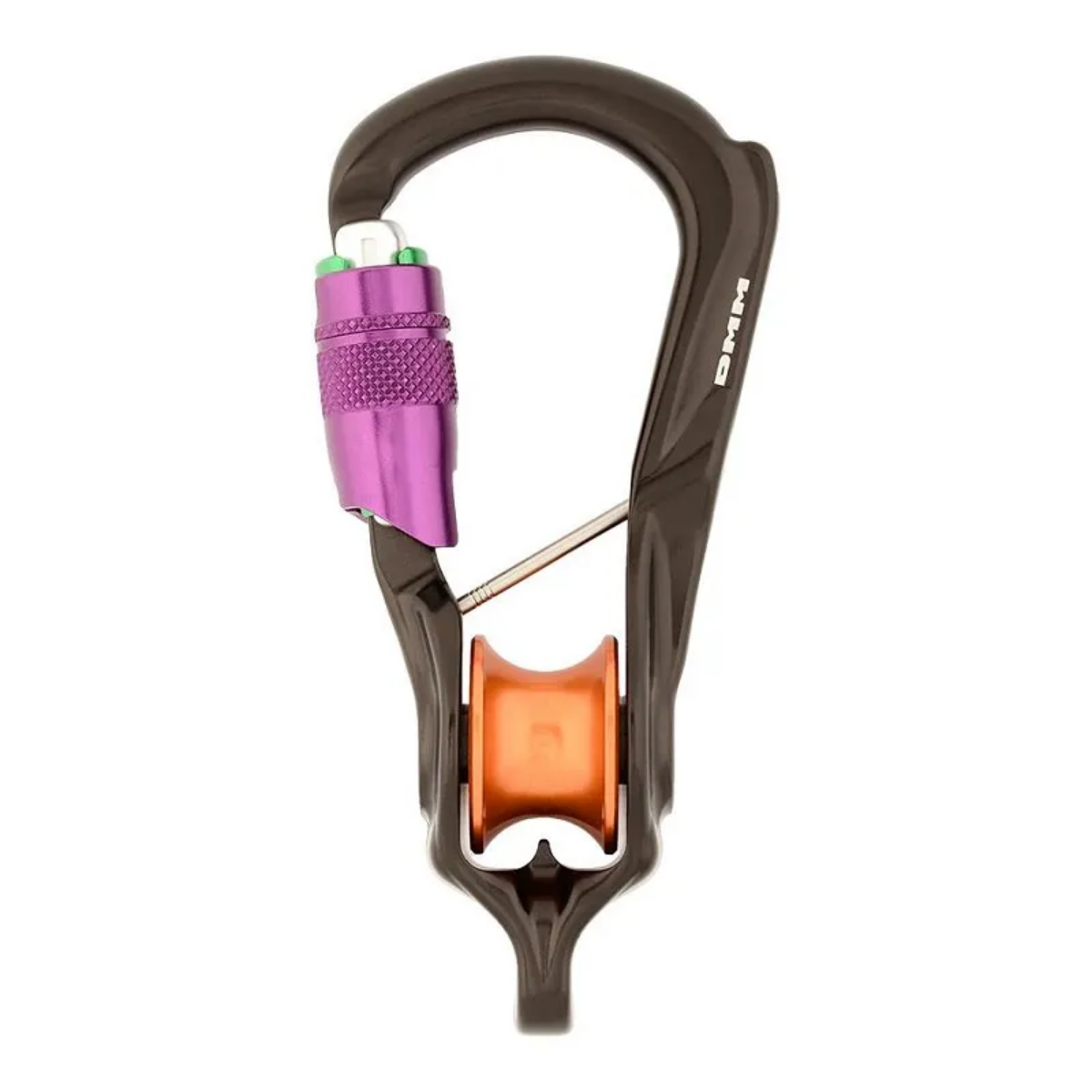

The DMM Revolver Rig is a connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
Features:Large sheave tread diameter for large bend radiusHigh efficiency roller bearingsFull strength becket accepts most connectors or direct textile connectionRemovable captive barDMM iD optionalKeylock nose for snag free operationUniquely profiled spine to aid correct orientation
Specifications:MBS (major axis): 25kNMBS (minor axis): 7kNMBS (gate open): 7kNWLL: 5kNDimensions: 76 x 161mmCertification: EN12278:2007, EN362:2004 B/T
Weight:Screwgate: 196gLocksafe: 203gDurolock: 213g
Everyone's favourite Pulley! The Triple Attachment Pulley by DMM forms an integral part of the renowned Hitch Climber System and is a firm favourite of working at height professionals the world over. The three hole construction makes rigging and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.
With hardly a straight line in sight, the hot forged curves and fairlead flares of DMM's Pinto Pulley make for an ultra efficient, ‘textile friendly’ environment. Clip, hitch, splice or thread the anchor holes or the becket to give numerous work and rescue configurations (textile attachments can help minimise any torsional build up in closed systems).
Slightly larger than the Pinto and accommodating a larger rope size, the DMM Pinto Rig also has a high efficiency roller bearing giving ultra smooth operation. With hardly a straight line in sight, the hot forged curves make for a ‘textile friendly’ environment.
The DMM Pinto Rig Spacer is an essential component for Pinto Rig applications where textile connecting elements tend to compress the side plates.
The DMM Pinto Spacer is an essential component for Pinto Pulley applications where textile connecting elements tend to compress the side plates.
The DMM Impact Blocks are designed to be used in industries where loads may be dropped onto rigging with considerable impact forces. The combination of high quality materials and advanced production processes ensures a rope friendly, durable and robust block that looks great and performs even better.
The Petzl Jag System is an enclosed 4:1 progress capture pulley system that can be used for hauling, tensioning a system, pickoffs, making a releasable anchor, or evacuating a victim when paired with an I'D Descender. The Jag and Jag Traxion that create the system utilise sealed ball bearings to increase efficiency up to 91%, which with the 4:1 mechanical advantage, enable easier work to be done by the user.
The Petzl Rescue pulley is very strong and efficient making it ideal for rescue, hauling heavy loads and intensive use. The Rescue pulley has a large diameter sheave mounted on sealed ball bearings which provides excellent efficiency. The Rescue pulley accepts up to three carabiners at once to facilitate rope manoeuvres.
